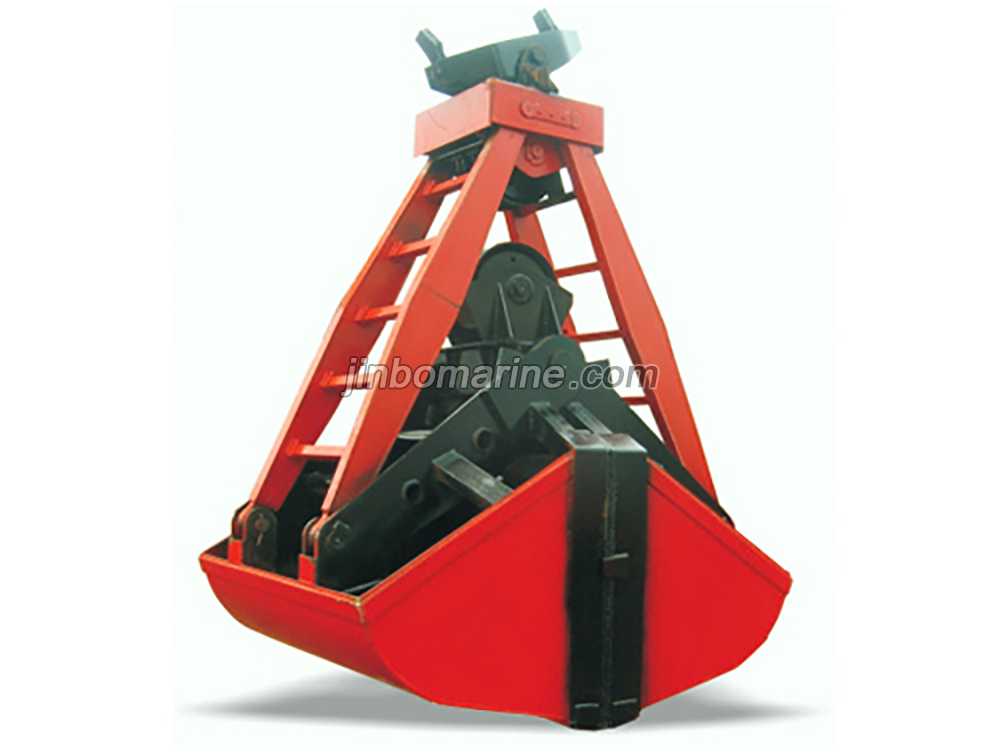

Four Rope Paina Grab Bucket

Request a Quote Not what you need, please send your RFQs via Email.

Details

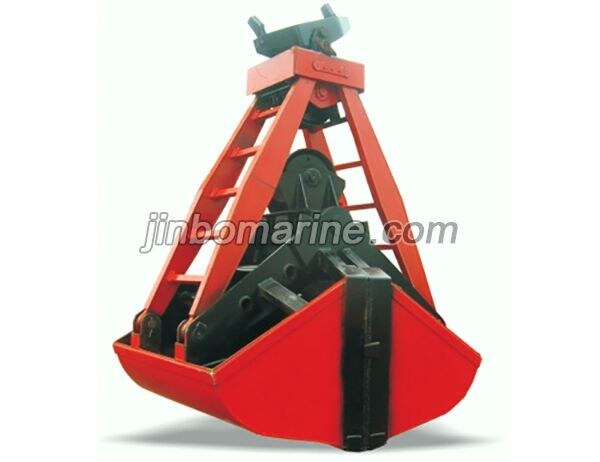

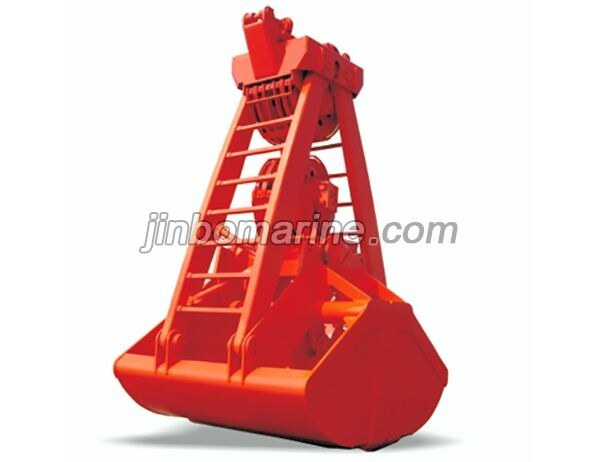

Four Rope Paina Grab Bucket Working Principle

UP series paina with double jaw plate grab bucket is modelling novel, reasonable structure, grab materials weight and grab dead weight than only 1.5~1.92,full of degree is up to 95%~100% is minimal granularity of loose materials ideal catch to provide. And the traditional ordinary four rope compared to grab has the following characteristics:

-The next bearing beam architecture is shortened, and the good strength and light weight

-Main hinge point of liner material for bearing steel

-Prolong the service life of the 4~5 times, and the blade plate adopts the wear-resisting materials which enhance the impact and friction level, the pulley multi-layer seal process, dust-proof, waterproof can underwater operations, the blade plate together gab clearance small, can achieve 0.3 mm~1 mm can keep clean, the whole structure the work place have strong shape not easily dislocation,this type of grab can design for double rope.

Four Rope Paina Grab Bucket Technical Specifications

Model Volume (m3) The Dia.of pulley (mm) The Dia.Of steel rope (mm) Grab self weight (t) Using crane ton(t)
UP0536 3.6 315 16 2.2 5
UP0860 6 400 20 3.2 8
UP1077 7.7 450 22 3.8 10
UP2012 12 630 28 8 20
UP1612 12.5 560 26 6.1 16
UP2014 14.2 630 28 8.7 20
UP2519 19 630 32 9.8 25
UP3222 22.5 710 36 14 32
UP4028 28 800 40 17.6 40
UP5035 35.5 900 44 21.5 50
UP6045 45 1000 48 27 63

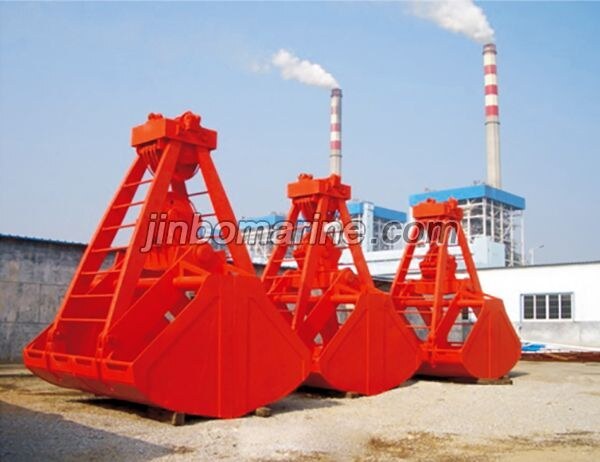

Four Rope Paina Grab Bucket Exhibition
