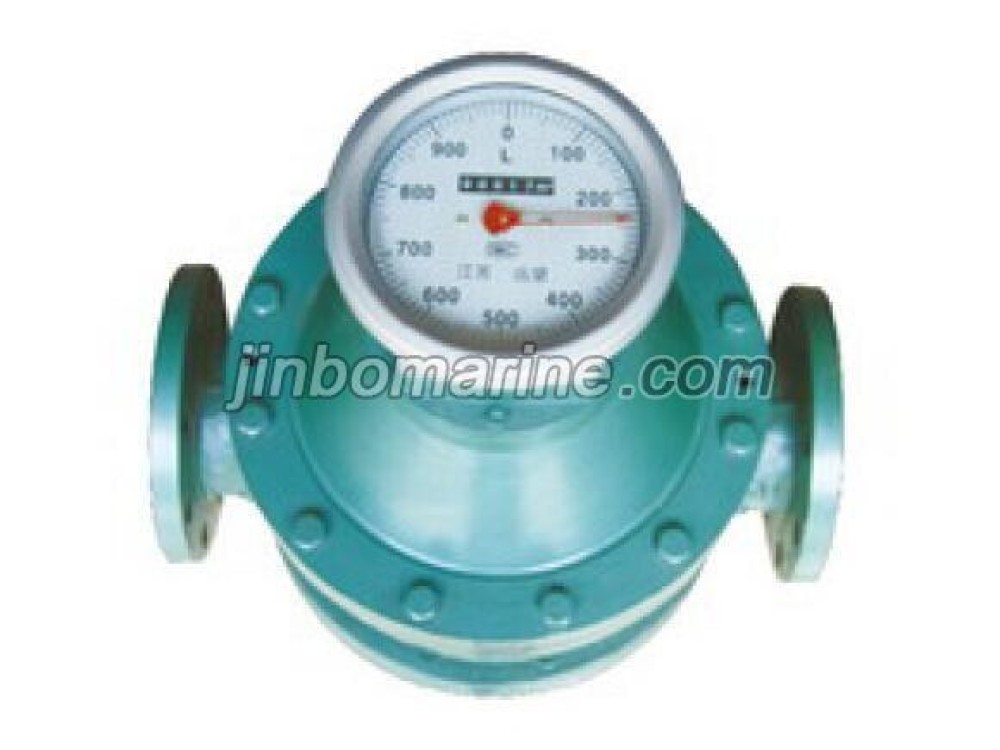

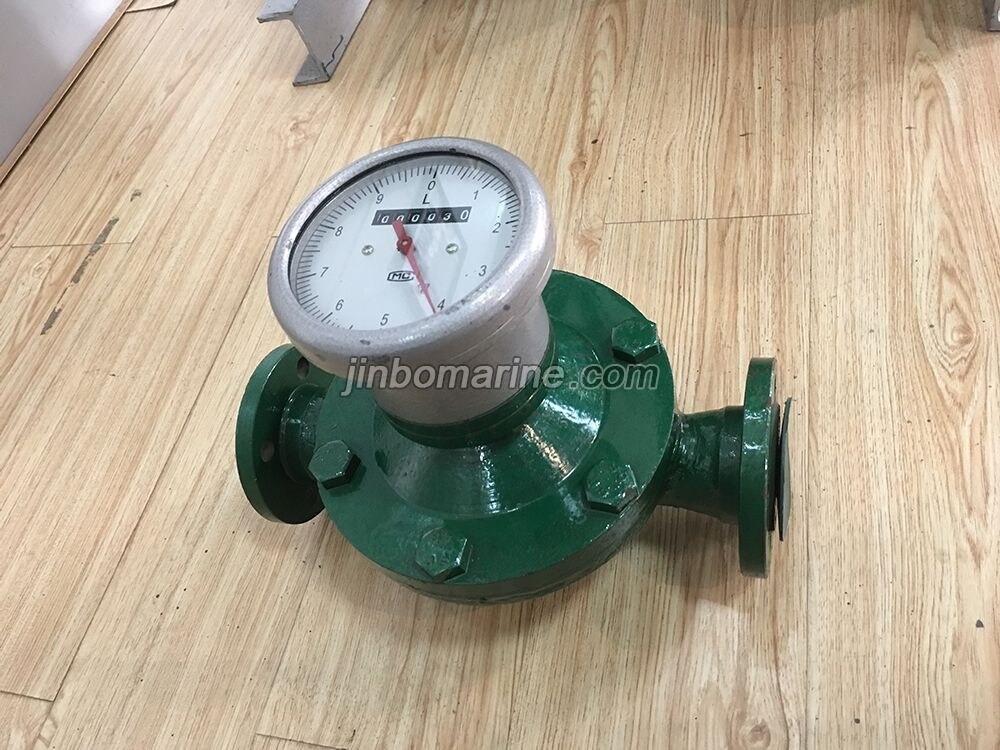

LC Type Oval Gear Flowmeter
- Category:Marine Flow Meter
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Packing Details:Carton packaging.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
LC Type Oval Gear Flowmeter (also can be named as ellipse gear flowemeter) is a positive displacement flow meter which can measure the liquid flow amount through the pipeline, it is suitable for marine, chemical,petroleum,medicine, electric power, metallugry and food iindustry etc.
Main Technical specification:
Material: cast iron, cast steel, stainless steel.
Nominal pressure:
1.6Mpa (cast iron ) ,
2.5, 4.0, 6.3Mpa (cast steel)
1.6, 2.5Mpa(stainless steel)
Suitable for the liquid temperature which is between -10 to 100 centigrade.
Accuracy: 0.5 , 0.2
Nominal diameter: 10 to 200mm.
Flow range:
| Model | Nominal diameter | Liquid viscocity to be measured(Mpa.s) | ||||||||||
|
|
<0.3 | 0.3~0.8 | 0.8~2 | 2~8 | 8~200 | 200~1000 | 1000~2000 | |||||
| Precision class | 0.5 | 0.5 | 0.2 | 0.5 | 0.2 | 0.5 | 0.2 | 0.5 | 0.2 | 0.5 | 0.5 | |
| LC-A (E)10 | 10 |
|
0.2~0.4 |
|
0.08~0.4 | 0.1~0.4 | 0.08~0.4 | 0.08~0.4 | 0.04~0.4 | 0.06~0.3 | 0.03~0.3 | 0.3~0.2 |
| LC-A (E)15 | 15 |
|
0.8~1.5 |
|
0.08~0.4 | 0.3~1.5 | 0.3~1.5 | 0.3~1.5 | 0.15~1.5 | 0.2~1 | 0.1~1.05 | 0.075~0.75 |
| LC-A (E)20 | 20 |
|
1.5~3 | 1~3 | 0.3~1.5 | 0.6~3 | 0.4~3 | 0.5~3 | 0.3~3 | 0.42~2.1 | 0.21~2.1 | 0.15~1.5 |
| LC-A (E)25 | 25 | 4~6 | 3~6 | 2~6 | 0.4~3 | 1.2~6 | 0.8~6 | 1~ | 0.6~6 | 0.84~4.2 | 0.42~4.2 | 0.3~3 |
| LC-A (E)40 | 40 | 9~15 | 7.5~15 | 5~15 | 0.8~6 | 3~15 | 2~15 | 2.5~15 | 1.5~15 | 2.1~10.5 | 1.05~10.5 | 0.75~7.5 |
| LC-A (E)50 | 50 | 10~24 | 8~24 | 8~24 | 2~15 | 4.8~24 | 3~24 | 4~24 | 2.4~24 | 3.36~16.8 | 1.68~16.8 | 1.2~12 |
| LC-A (E)80 | 80 | 30~60 | 24~60 | 24~60 | 3~24 | 12~60 | 660 | 10~60 | 6~60 | 8.4~42 | 4.2~42 | 3~30 |
| LC-A (E)100 | 100 | 50~100 | 40~100 | 40~100 | 10~100 | 20~100 | 10~100 | 16~100 | 10~100 | 14~70 | 6~70 | 5~50 |
| LC-A (E)150 | 150 | 95~190 | 75~190 | 75~190 | 19~190 | 38~190 | 19~190 | 32~190 | 19~190 | 26.6~133 | 13.3~133 | 9.5~95 |
| LC-A (E)200 | 200 | 170~340 | 140~340 | 140~340 | 34~340 | 68~340 | 34~340 | 56~340 | 34~340 | 47.6~238 | 23.8~238 | 17~170 |

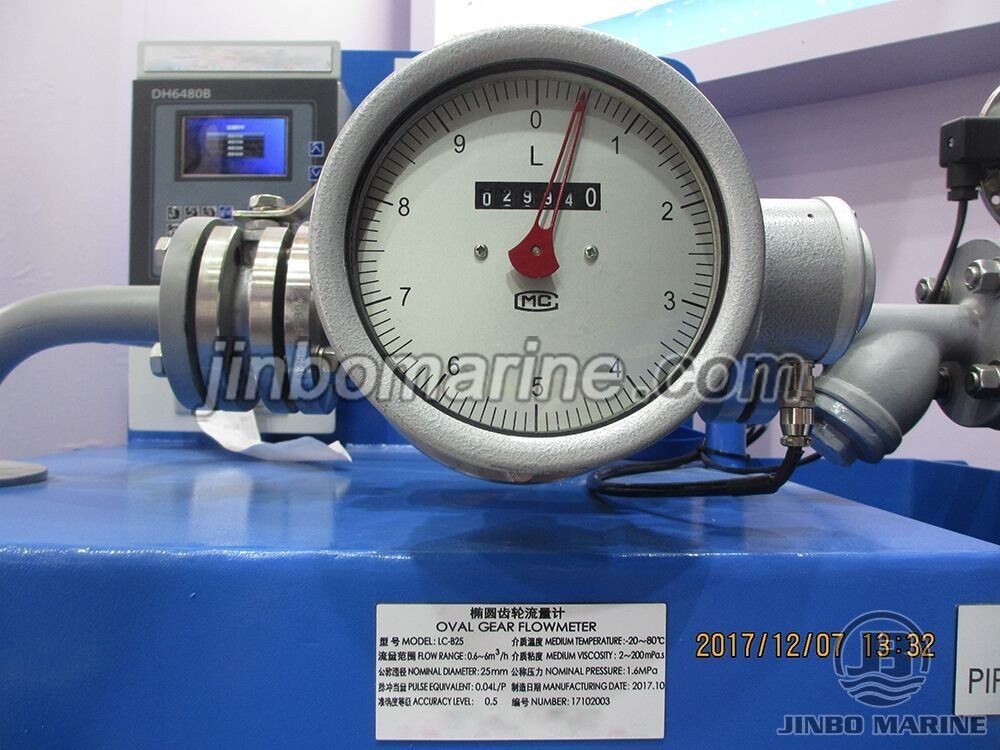

LC-B25 Oval Gear Flowmeter
