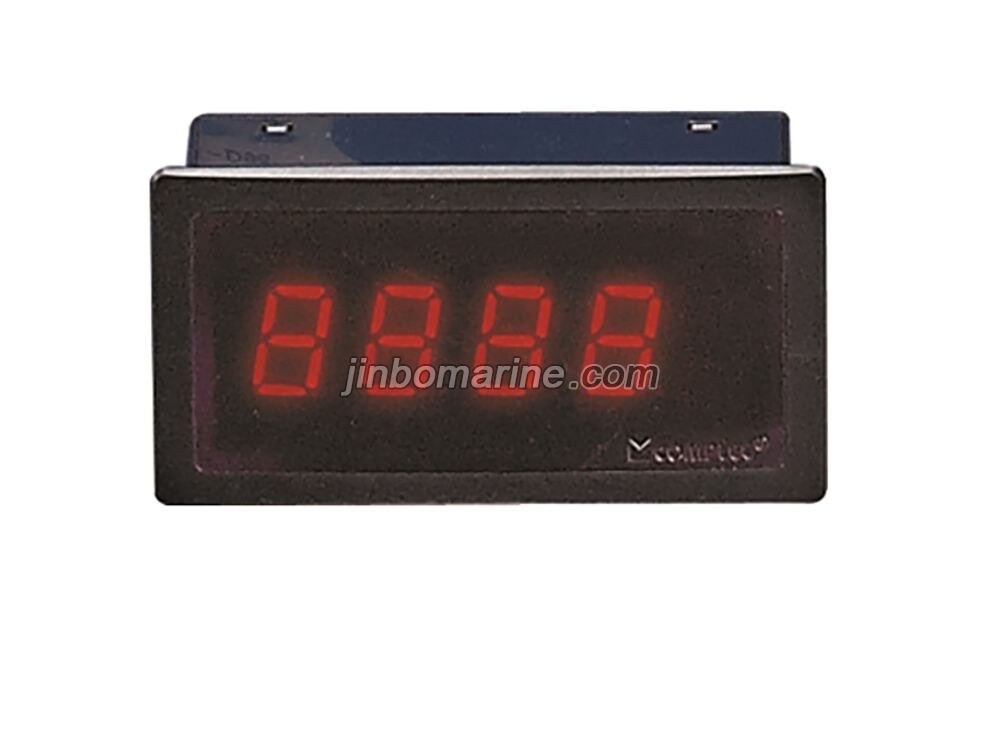

Miniature digital meter

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product description:

Suitable for the measurement and display to current and voltage in electrical system,automatic control system,it features easy to see,high accuracy,stable and anti vibration.

Chart:

Product description Type Measurement range Auxiliary power Accuracy Dimension(mm) Display digits
Digital Ammeter D842A AC 0...100mA -0…10A
DC 0…1mA -0…10A
AC9V,12V
DC5V,9V,12V
0.5 42(H)x79(W)x25(D)
Cut-out size:39(H)x76(W)
3 1/2
Digital Voltmeter D842V AC 0...10V-0…500V
DC 0…50mV -0…500V
0.5 3 1/2
