LFB25 Series Priority Variable Pump Control Valve

LFB25 Series Priority Variable Pump Control Valve     Principle :     Port Connection Flanged connection,threaded connection Nominal Size 25 mm ...

Other Marine Valves & Accessories1 Photos ISO9001 Supplier

Loading product images...

Category: Other Marine Valves & Accessories

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

We can supply according to your requirement.

China LFB25 Series Priority Variable Pump Control Valve:

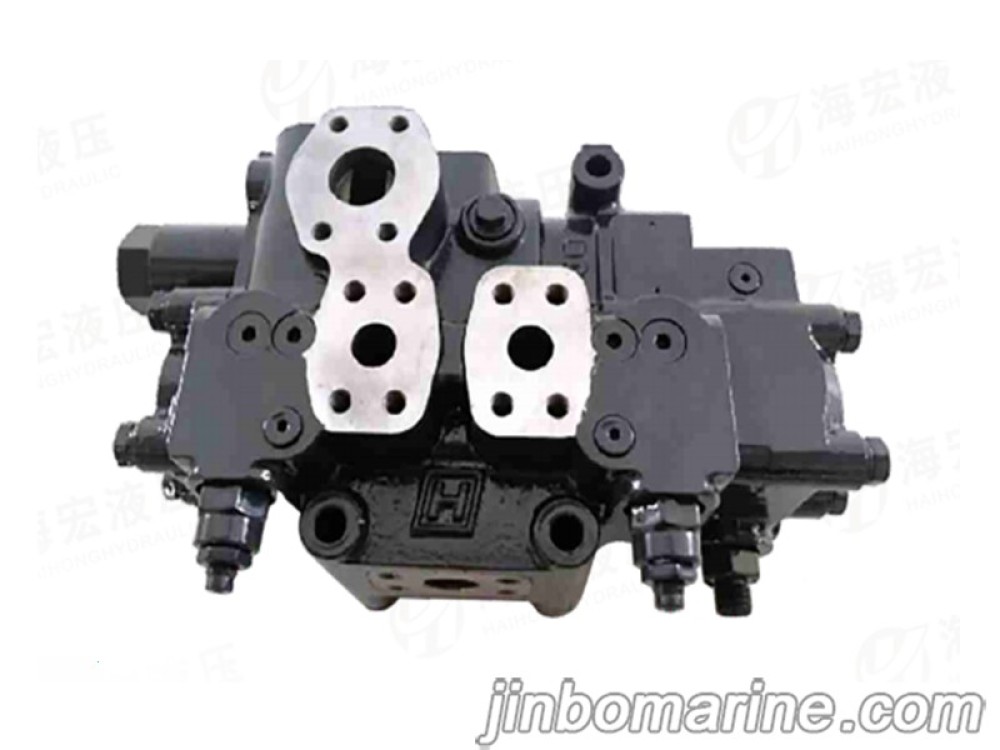

LFB25 Series Priority Variable Pump Control Valve

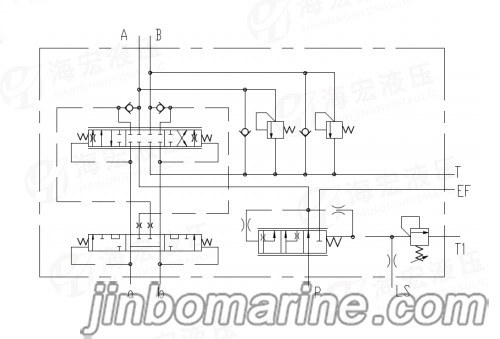

Principle :

Port Connection			Flanged connection,threaded connection
Nominal Size			25 mm
Rated Pressure			250 bar
Nominal Flow			250 L/min
Output Flow			70 ~ 120 L/min
Relief Valve Pressure Setting Range			100 ~ 315 bar
Overload Valve Pressure Setting Range			100 ~ 315 bar
Hydraulic Oil Temperature Range			−20 ~ +100 °C
Viscosity Range			10 ~ 380 mm2/s
Permitted Fluid Contamination Class			-/19/16 (ISO 4406:1999)
