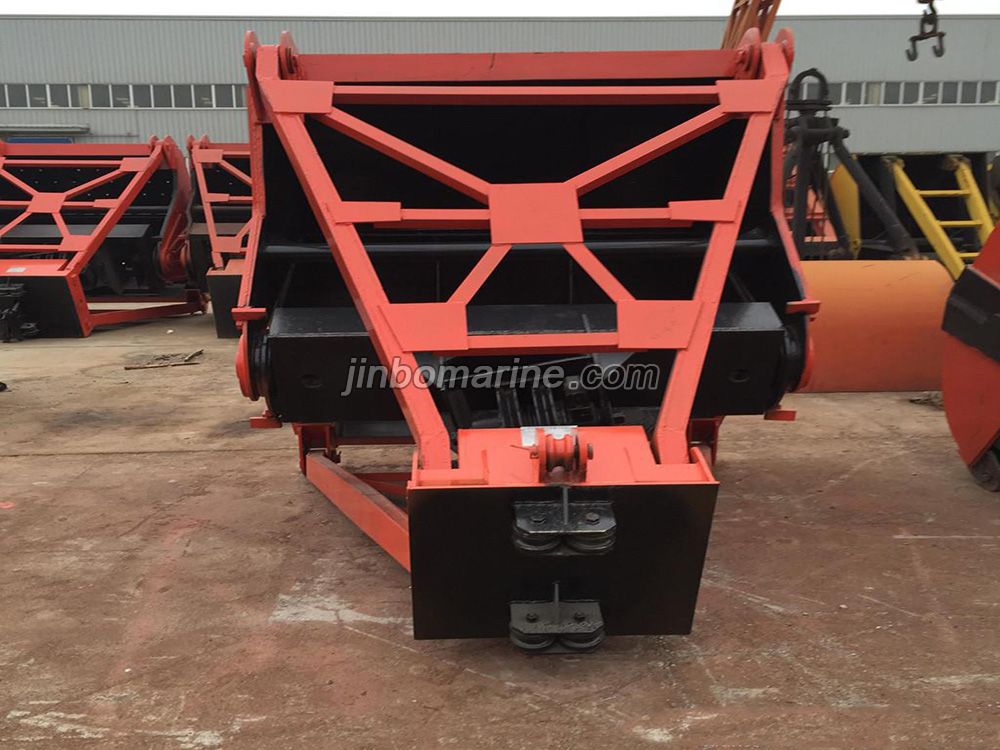

Double Ears Shaft Four Rope Grab Bucket

Request a Quote Not what you need, please send your RFQs via Email.

Details

Four Rope Grab Bucket Working Principle

In all kinds of crane with two group of motor durm(motor hoist),each group motor durm lead two wire ropes, they make one group wire ropes rooted in the balance frame for supporting, another group of wire rope pass the up beam pulley and the down beam pulley, composite a pulley block as open and closed grab bucket.

Working beginning, support wire rope will lift the grab bucket in well place, and then shut down the support rope, reply on the dead weight of the down beam forced the down beam big shaft as center open the garb body. When the two ear plates’ touch piece smash together, the grab body part open maximum. When opening the grab bucket, the up beam pulley and down beam pulley‘s center distance increase. And then the support rope put down, the opened grab bucket fall on the captured materials above, and packed around the open and close rope, the up beam pulley and the down beam pulleys’ center distance return to its original position. Thus completing the capture the grab materials process. In the last, lifting open and close rope and support rope at the same time, the whole grab bucket is lifted, according to the crane, move the grab bucket to the discharge yard, unloading the materials.

Double Ears Shaft Four Rope Grab Bucket Technical Specifications

Model Volume (m3) The rate of material (t/m3) The Dia.of pulley (mm) The Dia.Of steel rope (mm) Grab self weight (t) Using crane ton(t)
K10Z 1 3 460 16 3.2 5
K10 1 2.5 460 16 2.5 5
K15 1.5 1.7 460 16 2.8 5
KA25 2.5 1 460 16 2.6 5
KA30 3 1 460 16 2.7 5
KA73 1.5 3.3 410 20 5.78 10
KB20 2 2.5 575 20 5.1 10
KB25 2.5 2 575 20 5.5 10
KB30 3 1.7 575 20 5.6 10
KB520 3 1.7 410 20 5.2 10
KB23 2 2.5 565 20 4.7 10
KB25 3 1.7 565 20 4.87 10
KB40 4 1.4 575 20 5.2 10
KB60 6 1 575 20 5.6 10
KC25 2.5 3.3 690 24 9.6 16
KC30 3 2.5 690 24 8.6 16
KC33 3.2 2.5 690 24 8.8 16
KC10 10 1 690 24 8.6 16
KC45 4.5 1.7 690 24 8.85 16
KT120 12 1 690 24 8.72 20
KT40 4 2.5 800 27 10.8 20
KT60 6 1.7 800 27 11.7 20
KB12 12 1 700 28 13.5 25

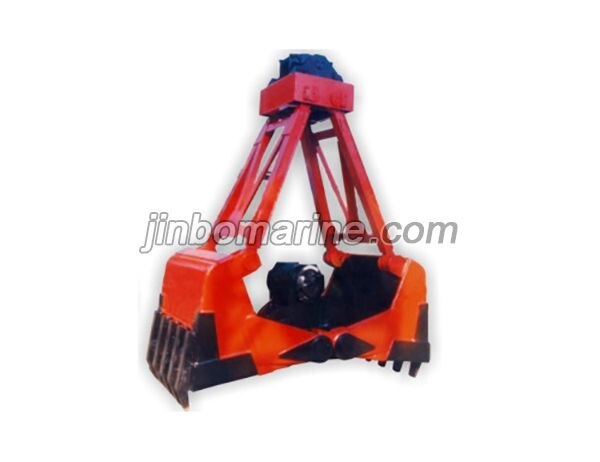

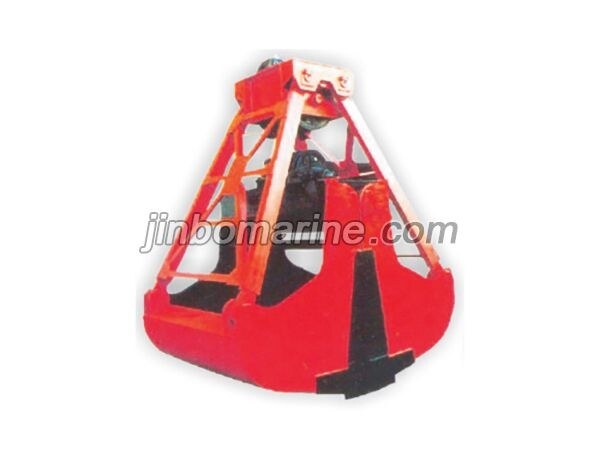

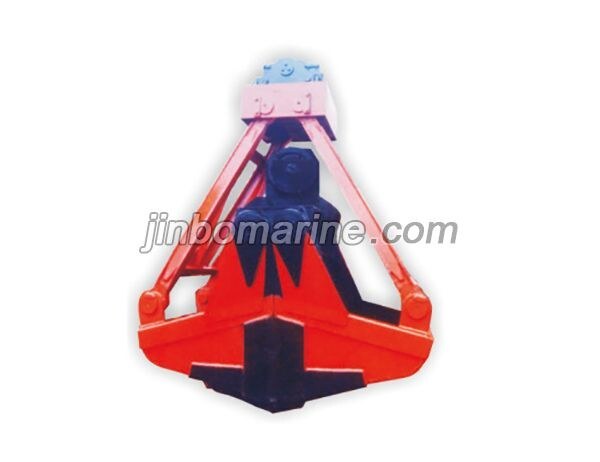

Double Ears Shaft Four Rope Grab Bucket Exhibition
