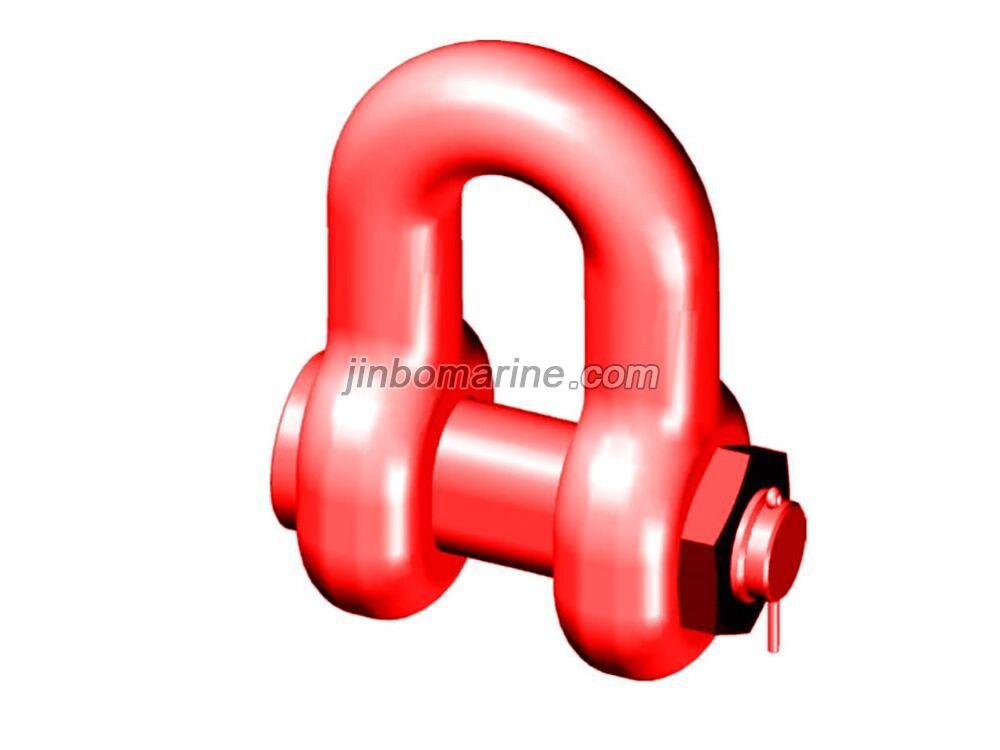

Type D17 Anchor Shackle with Oval Pin

Material : Alloy steel, Grade R3/R3S/R4/R4S/R5.

Finish : Painted.

Standards : ISO 1704.

Temperature range : -40°C up to +200°C,

Polar Rated Standard certification : Certificate of Conformity 3.1 material certificate EN 10204

Also to be used for mooring applications Non-standard sizes or custom products available on request.

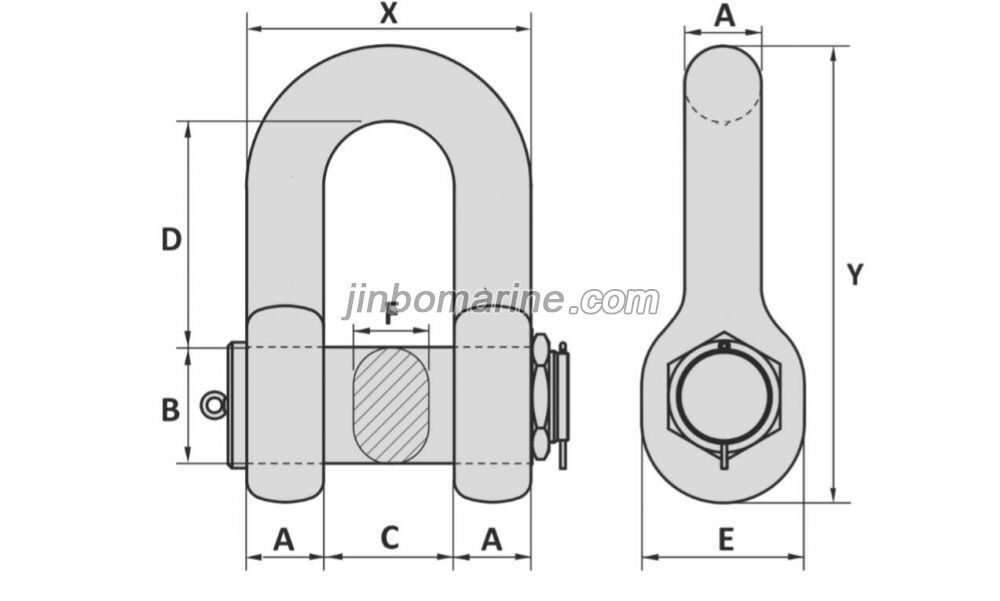

A = 1.4 x chain diameter

B = 1.8 x chain diameter

C = 2.4 x chain diameter

D = 4.6 x chain diameter

E = 3.1 x chain diameter

F = 1.4 x chain diameter

X = 5.2 x chain diameter

Y = 8.7 x chain diameter
