Marine Cast Iron Screw Down Check Globe Valve JIS F7377 16K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

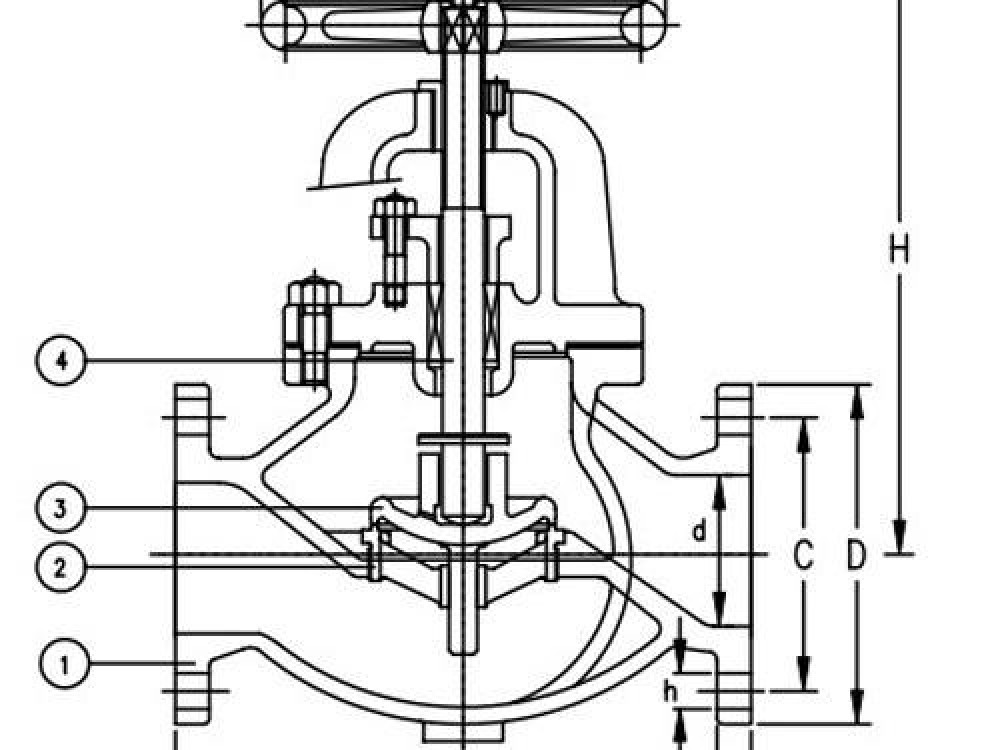

Marine Cast Iron Screw Down Check Globe Valve JIS F7377 16K Drawing

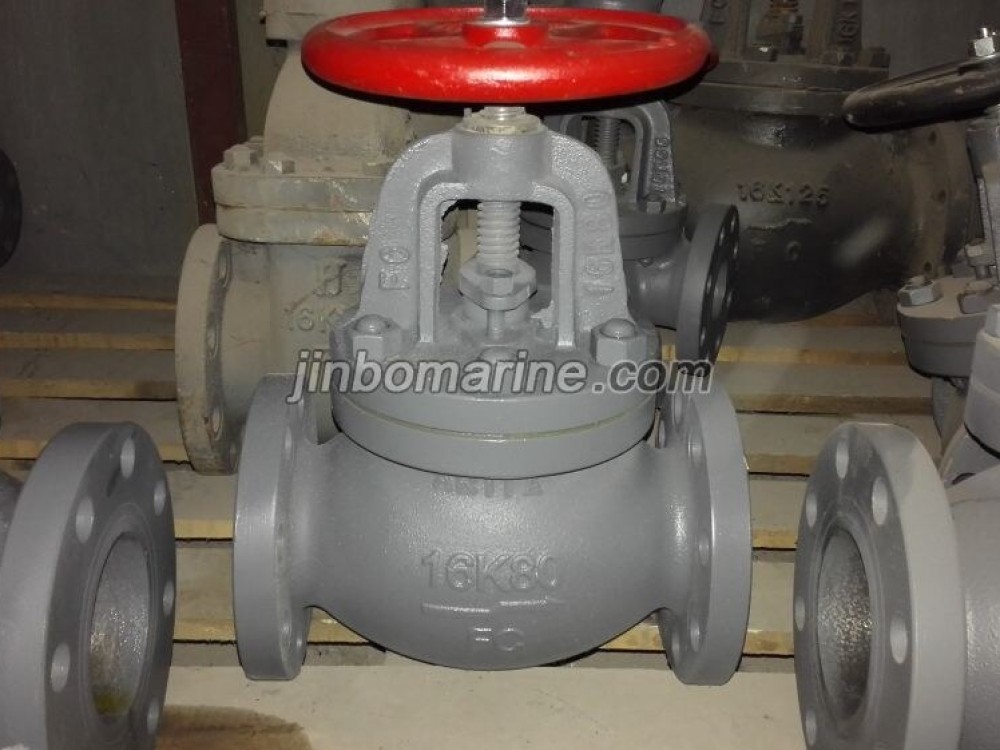

Marine Cast Iron Screw Down Check Globe Valve JIS F7377 16K Drawing

China Marine Cast Iron Screw Down Check Globe Valve JIS F7377 16K:

Marine Screw Down Check Globe Vavle also can be called as SDNR Globe Valve or SDNR valve. Cast Iron SDNR valve is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7377-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa

Flange size as per JIS B2220 - 16K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

Main Size List(mm):

IMPA CODE DN L D C No of bolt hole h t H D2 Weight(kgs)
751151 50 220 155 120 8 19 20 285 160 19.6
751152 65 270 175 140 8 19 22 310 200 28.3
751153 80 300 200 160 8 23 24 340 224 40.4
751154 100 350 225 185 8 23 26 385 250 56.9
751155 125 430 270 225 8 25 26 455 315 89.5
751156 150 500 305 260 12 25 28 510 355 123
751156 200 570 350 305 12 25 30 630 450 188
