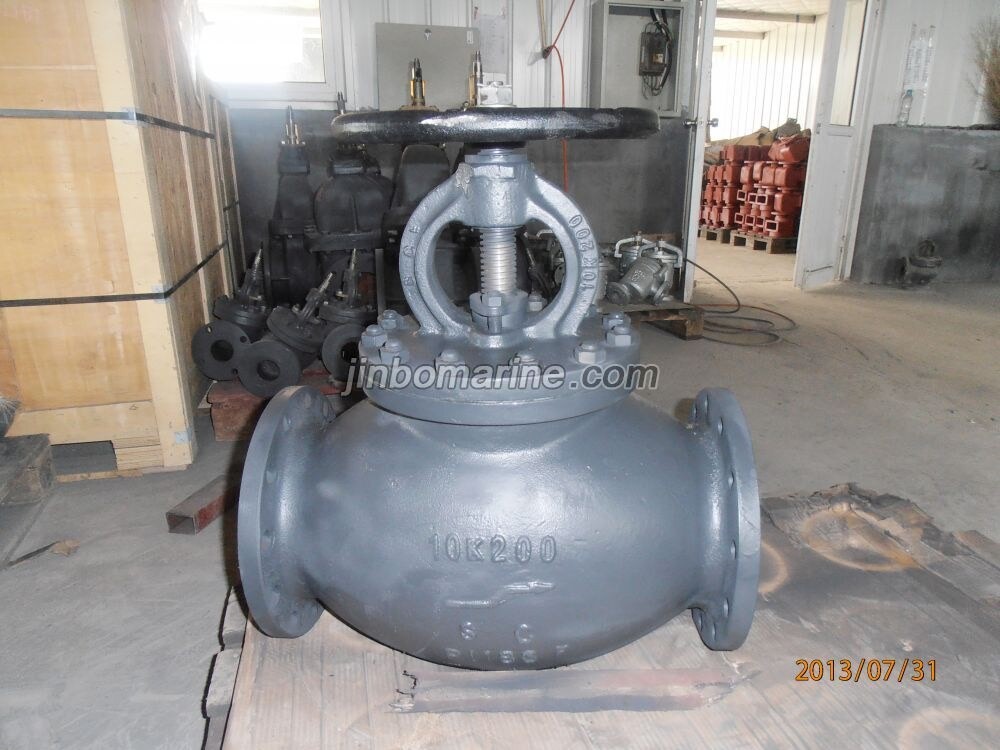

Marine Cast Steel Globe Valve JIS F7319 10K

It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 300 centigrade degree.

Design Standard: JIS F7319-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -10K

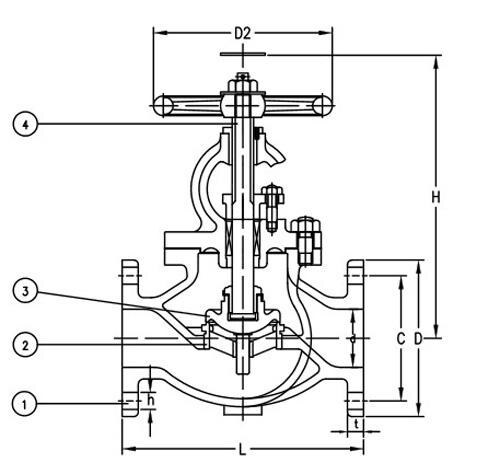

1-Body:Cast Steel (SC480)

2-Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

3-Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

4-Stem: C3771BD (Brass) or SUS403

5-Bonnet: Cast Steel (SC480)

6-Handwheel: Cast Iron (FC200)

7-Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)
