Marine Cast Steel Screw Down Check Globe Valve JIS F7471 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

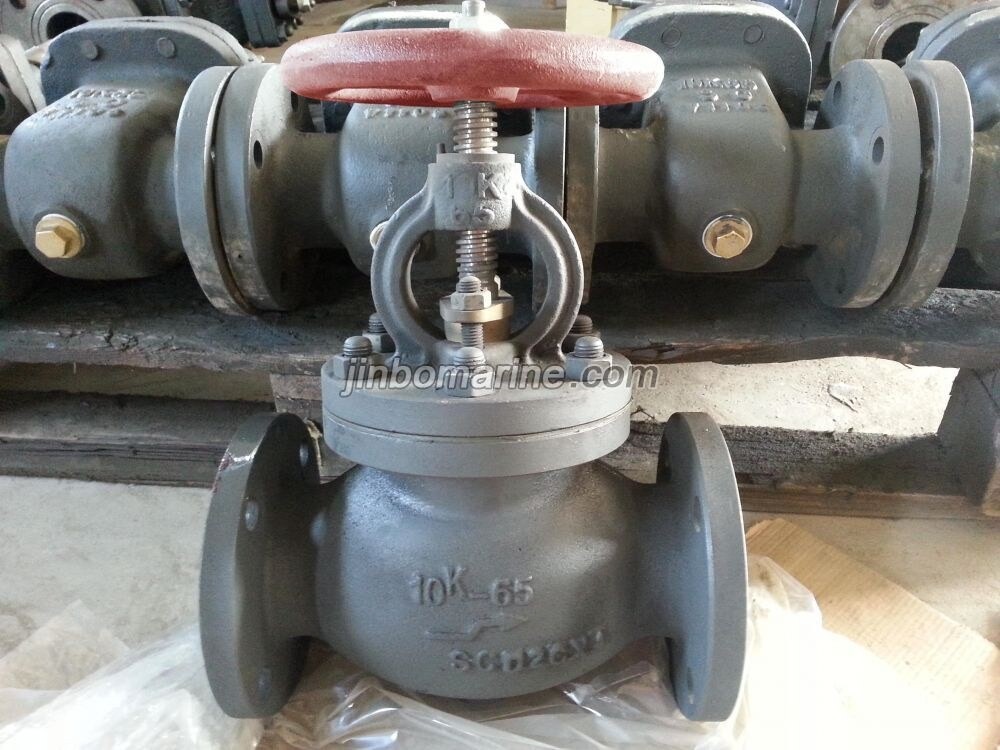

China Marine Cast Steel Screw Down Check Globe Valve JIS F7471 10K:

Marine Cast Steel Screw Down Check Angle Valve also can be called as Marine Cast Steel Angle SDNR Valve or SDNR Angle Valve. It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 300 centigrade degree.

Design Standard: JIS F7471-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -10K

Main Material:

1-Body:Cast Steel (SC480)

2-Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

3-Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

4-Stem: C3771BD (Brass) or SUS403

5-Bonnet: Cast Steel (SC480)

6-Handwheel: Cast Iron (FC200)

7-Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

8-Gasket: non-asbestos

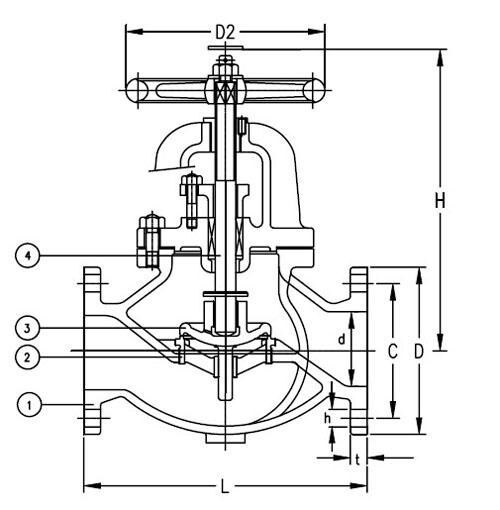

Main Size List(mm):

IMPA CODE Size L D C t No of bolt hole h H D2 Weight(kgs)
751201 50 220 155 120 16 4 19 270 160 17.9
751202 65 270 175 140 18 4 19 300 200 26
751203 80 300 185 150 18 8 19 310 200 29.8
751204 100 350 210 175 18 8 19 355 250 44.7
751205 125 420 250 210 20 8 23 415 280 70.3
751206 150 490 280 240 22 8 23 470 315 96.4
751207 200 570 330 290 22 12 23 565 355 159
751208 250 740 400 355 24 12 25 645 400 257
751209 300 840 445 400 24 16 25 735 450 370
