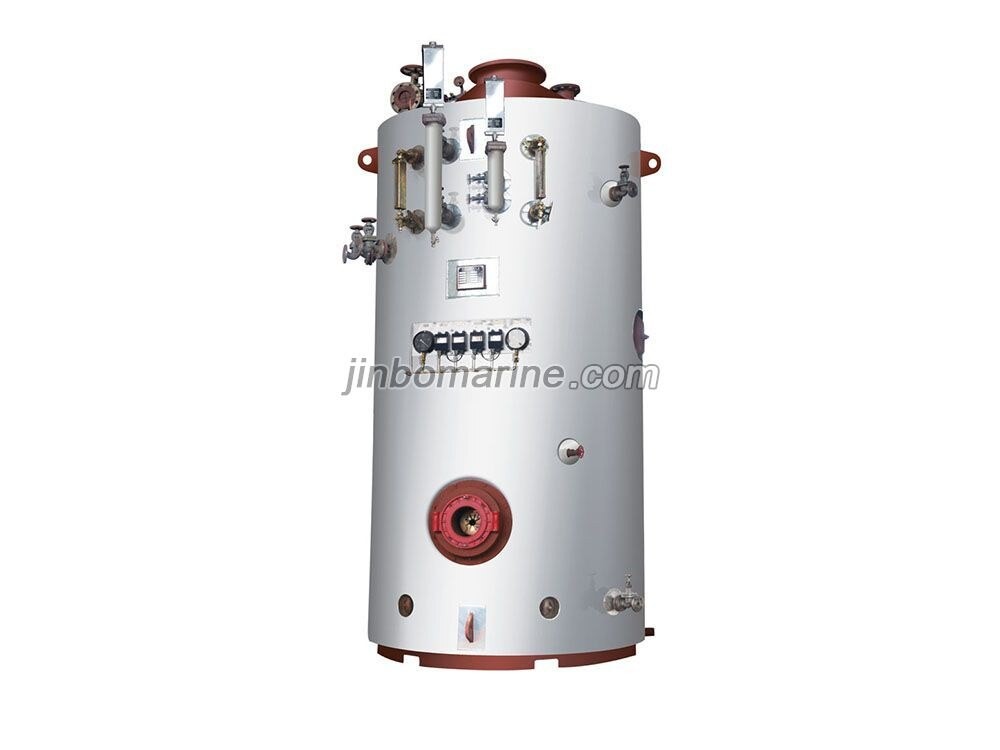

LSK Marine Oil Fired Boiler Type B
- Category:Marine Boiler
- Certificate:CCS, GL, LR, BV, DNV, ABS, NK, KR, RMRS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Description:
LSK B type needle-tube boiler has the characteristics of small size, light weight, high thermal efficiency (>83%), fast steam-raising speed (generally 15-18 minutes), easy maintenance, etc. Especially needle-tube structure makes it more convenient to clean up soot, and does not pollute the environment of the engine room.

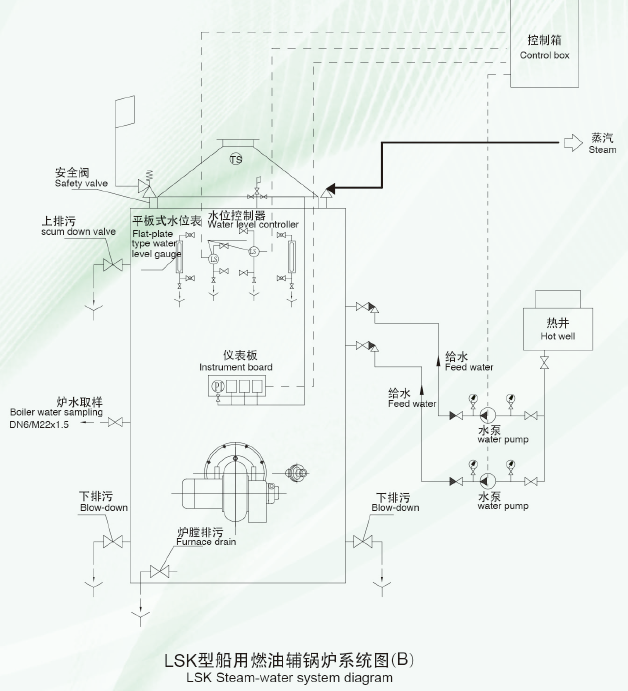

System:
Product characteristics:

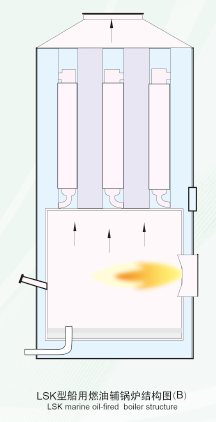

1. LSK boiler is a high performance vertical needle-tube boiler with welded structure.
2. The flue gas side surface expanded by needles can increase heat transfer very effectively. The design is optimized to reduce weight and increase strength.
3.0.5-5t/h boilers adopt cylindrical bladder, which has the characteristics of simple and reliable structure; 5-50t/h boilers adopt membrane water wall bladder, which has the characteristics of light weight, small size and high efficiency.
4. Thick-walled flue pipes will have longer service life.
Technical data:
| Modle（B） |
Evaporation Capacity(kg/h) |
Working Pressure (Mpa) |

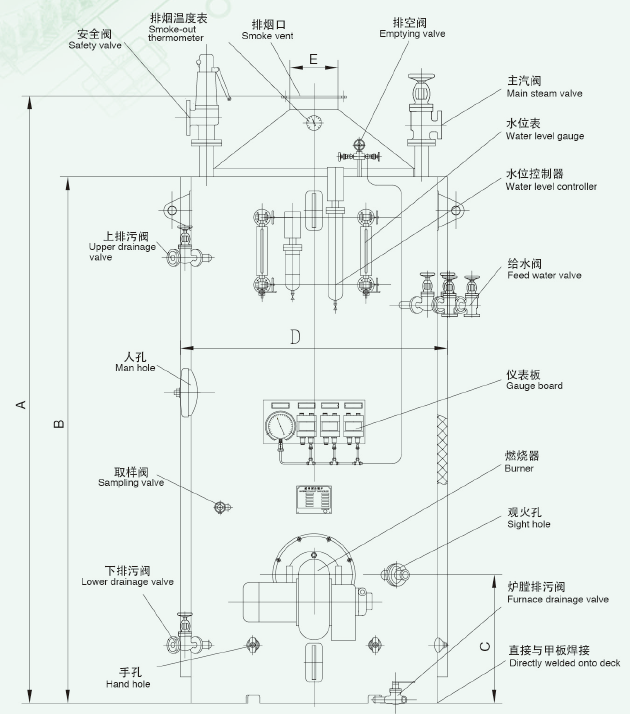

Dimension(mm) | ||||
| A | B | C | D | E | |||
| LSK0.15-0.5 | 150 | 0.5 | 1900 | 1600 | 415 | Φ1040 | DN150 |
| LSK0.3-0.7 | 300 | 0.7 | 2266 | 1900 | 466 | Φ1140 | DN200 |
| LSK0.5-0.7 | 500 | 0.7 | 2516 | 2170 | 516 | Φ1140 | DN200 |
| LSK0.7-0.7 | 700 | 0.7 | 2930 | 2480 | 600 | Φ1240 | DN250 |
| LSK1-0.7 | 1000 | 0.7 | 3650 | 3150 | 850 | Φ1440 | DN300 |
| LSK1.2-0.7 | 1200 | 0.7 | 3860 | 3360 | 850 | Φ1550 | DN300 |
| LSK1.5-0.7 | 1500 | 0.7 | 3960 | 3460 | 850 | Φ1550 | DN300 |
| LSK2-0.7 | 2000 | 0.7 | 4050 | 3500 | 850 | Φ1750 | DN300 |
| LSK2.5-0.7 | 2500 | 0.7 | 4200 | 3600 | 900 | Φ1850 | DN350 |
| LSK3-0.7 | 3000 | 0.7 | 4500 | 3900 | 950 | Φ1950 | DN350 |
| LSK4-0.7 | 4000 | 0.7 | 4750 | 4150 | 1050 | Φ2150 | DN500 |
| LSK4.5-0.7 | 4500 | 0.7 | 5000 | 4400 | 1100 | Φ2150 | DN500 |
| LSK5-0.7 | 5000 | 0.7 | 4980 | 4380 | 1100 | Φ2350 | DN500 |
| LSK6-0.7 | 6000 | 0.7 | 5180 | 4580 | 1200 | Φ2350 | DN600 |
| LSK7-0.7 | 7000 | 0.7 | 5630 | 5030 | 1350 | Φ2355 | DN600 |

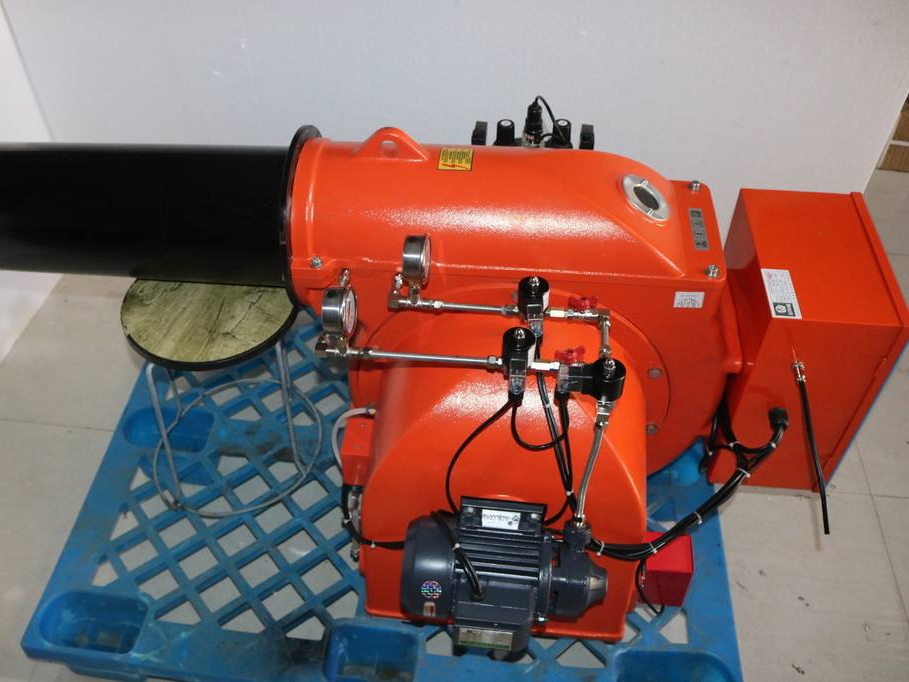

Import burner

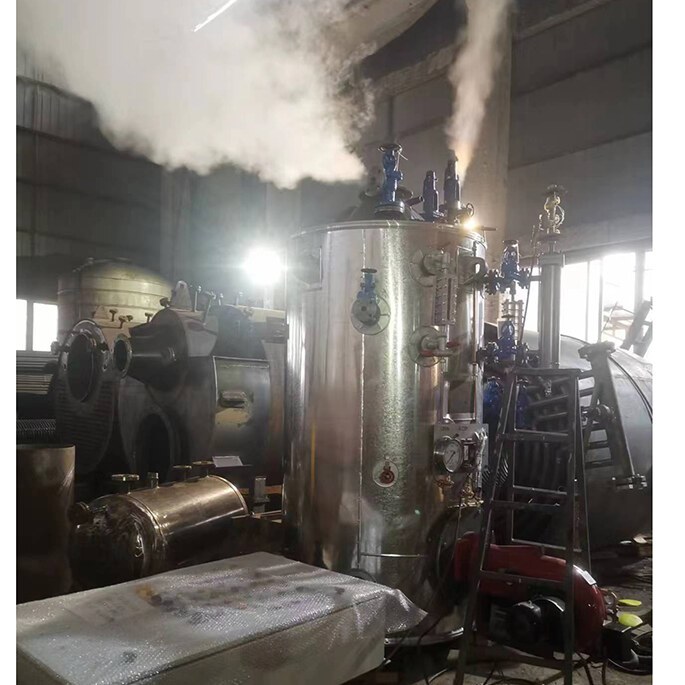

RMRS TEST:
