China UHMW PE Pad:

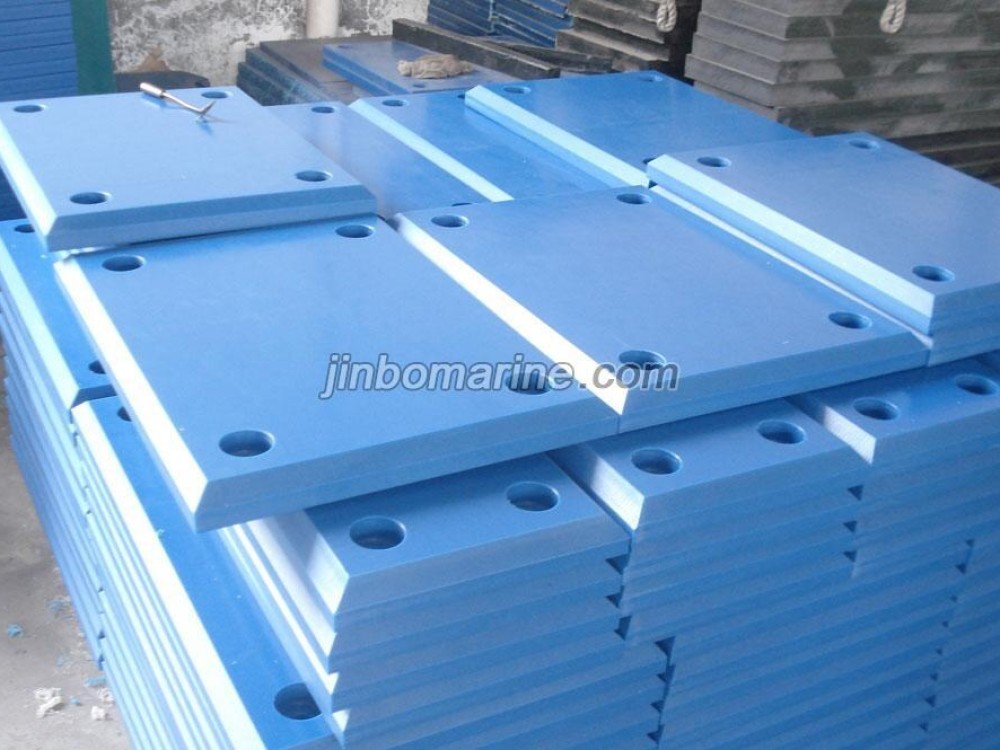

UHMW PE pad (ultra high molecular weight polyethylene pad) is the first choice material for facing steel fender panels and other heavy duty applications.
It combines very low friction with excellent impact strength and a wear resistance much better than steel.
UHMW offers a combination of excellent properties outstanding abrasion resistance,superior impact resistance,non-sticking and self-lubricating properties and excellent mechanical properties,even in cryogenic conditions.UHMW product reduces noise from impact and vibration.It is a self-lubricating material that is chemical,corrosion,and wear-resistant.And its food safe.The weight is light.Life is higher than steel.The wear resistance is 3-7 times of carbon steel and stainless steel

The Advantage of UHMW PE pad:

1. Non-Toxic and smell

2. Low coefficient of friction

3. Corrosion resistant,Abrasion and impact resistant

4. Anti-Weather and Anti-Aging

5. Sell-lubricating ,wear Resistant

6. Great liner material for industrial material handing applications

7. UV Resistant/ultraviolet-resistance sheet

8.High Operating Temperature,

9.High Tensile Strength,High Viscosity

10.Reprocessed,

Our Service:

We can produce all kindsUHMWPEmarine fender pad if you send us the drawings.

Our PE pad can be made in many colors and thicknesses according to your requirements and also can be provided in a re-processed grade for a economical solution.

Item

Test method

Test result

unit

Specific weight

ASTM D-792

0.938

g/cm3

Yield strength

ASTM D-638

22

MPa

Ultimate strength

ASTM D-638

45

MPa

Breaking Elongation

ISO527

355

%

Impact strength

ISO179

130

Mj/mm2

Abrasion

ISO15527

83

Steel=100

Shore Hardness

ISO868

66

Shore D

Friction Coefficient

ASTM D-1894

0.11

Unitless

Coefficient of thermal expansion

ASTM D-696

0.0002

Water Absorption

ASTM D-570

0.0094

%

Melt point

ASTM D-3417

138
