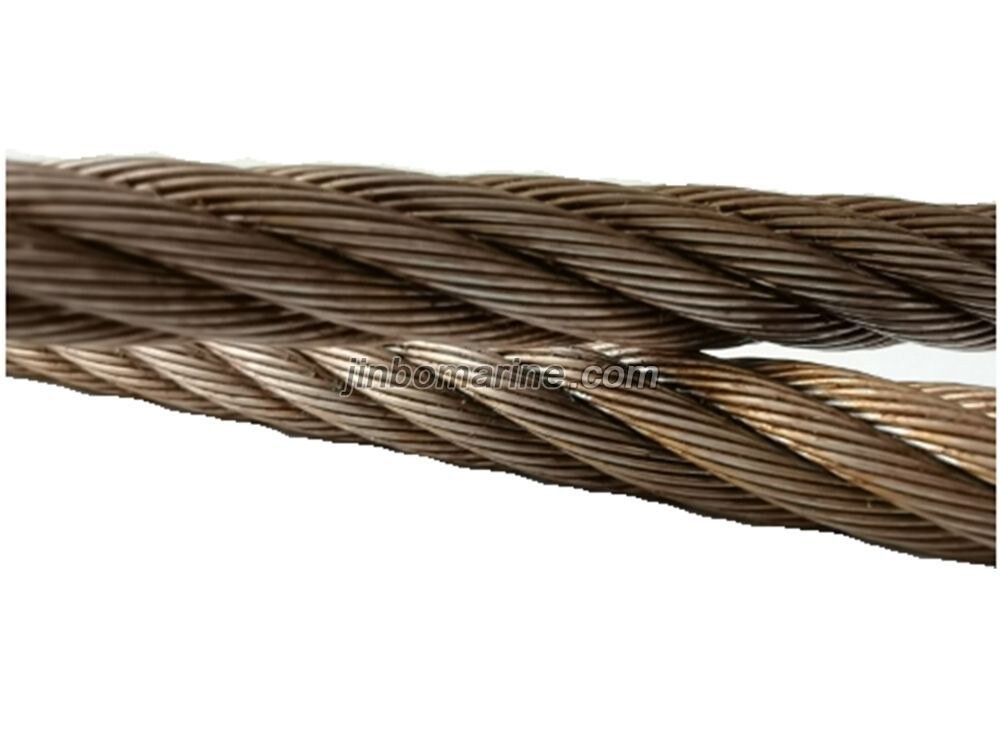

6X37+IWR Steel Wire Rope Category B

Request a Quote Not what you need, please send your RFQs via Email.

Details

Wire Rope Definition

a. Wires: steel wires for wire ropes are normally made of non-alloy carbon steel with a carbon content of 0.4 to 0.95%. The tensile forces and to run over sheaves with relatively small diameters.
b. Strand: the strand is a component of wire rope usually consisting of an assembly of wires of appropriate diamsions laid helically in one or more layers around a central element.
c. Core: the core is the central element, of fiber or steel, around which are laid helically the outer strands of wire rope. The core provides proper support for the strands under normal bending and loading conditions.

d. Wire rope is several strands of metal wire twisted into a helix forming a composite "rope", in a pattern known as "laid rope". Larger diameter wire rope consists of multiple strands.

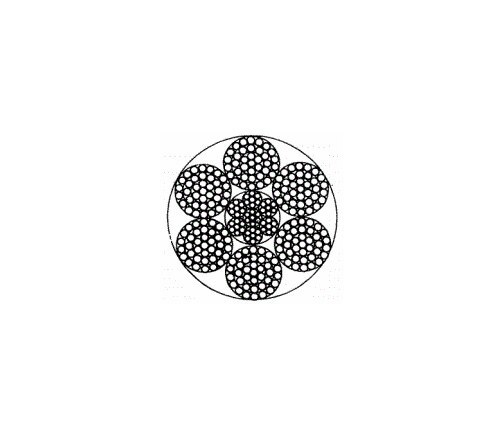

6X37+IWR Steel Wire Rope Category B Construction

6X37+IWR Steel Wire Rope Category B Technical Parameters

Diameter
MM
Approx.Weight Minimun Breaking Load of Rope(KN)
Kg/100m 1570Mpa
NF SF IWR FC IWR
5 8.65 8.43 10 11.6 12.5
6 12.5 12.1 14.4 16.7 18
7 17 16.5 19.6 22.7 24.5
8 22.1 21.6 25.6 29.6 32.1
9 28 27.3 32.4 37.5 40.6
10 34.6 33.7 40 46.3 50.1
11 41.9 40.8 48.4 56 60.6
12 49.8 48.5 57.6 66.7 72.1
13 58.5 57.6 67.6 78.3 84.6
14 67.8 66.1 78.4 90.8 98.2
16 88.6 86.3 102 119 128
18 112 109 130 150 162
20 138 135 160 185 200
22 167 163 194 224 242
24 199 194 230 267 288
26 234 228 270 313 339
28 271 264 314 363 393
30 311 303 360 417 451
32 354 345 410 474 513
34 400 390 462 535 579
36 448 437 518 600 649
38 500 487 578 669 723
40 554 539 640 741 801
42 610 594 706 817 883
44 670 652 774 897 970
46 732 713 846 980 1060
48 797 776 922 1070 1150
50 865 843 1000 1160 1250
52 936 911 1080 1250 1350
54 1010 983 1170 1350 1460
56 1090 1060 1250 1450 1570
58 1160 1130 1350 1560 1680
60 1250 1210 1440 1670 1800

Diameter
MM
Minimun Breaking Load of Rope(KN)
1670Mpa 1770Mpa 1870Mpa
FC IWR FC IWR FC IWR
5 12.3 13.3 13.1 14.1 13.8 14.9
6 17.7 19.2 18.8 20.3 19.9 21.5
7 24.1 26.1 25.6 27.7 27 29.2
8 31.5 34.1 33.4 36.1 35.3 38.2
9 39.9 43.2 42.3 45.7 44.7 48.3
10 49.3 53.3 52.2 86.5 55.2 59.7
11 59.6 64.5 63.2 68.3 66.7 72.2
12 70.9 76.7 75.2 81.3 79.4 85.9
13 83.3 90 88.2 95.4 93.2 101
14 96.6 104 102 111 108 117
16 126 136 134 145 141 153
18 160 173 169 183 179 193
20 197 213 209 226 221 239
22 238 258 253 273 267 289
24 284 307 301 325 318 344
26 333 360 353 382 373 403
28 386 418 409 443 432 468
30 443 479 470 508 496 537
32 504 546 535 578 565 611
34 570 616 604 653 638 690
36 638 690 677 732 715 773
38 711 769 754 815 797 861
40 788 852 835 903 883 954
42 869 940 921 996 973 1050
44 954 1070 1010 1090 1070 1150
46 1040 1130 1100 1190 1170 1370
48 1140 1230 1200 1300 1270 1370
50 1230 1440 1300 1410 1380 1490
52 1330 1440 1410 1530 1490 1610
54 1440 1550 1520 1650 1610 1740
56 1540 1670 1640 1770 1730 1870
58 1660 1790 1760 1900 1860 2010
60 1770 1920 1880 2030 1990 2150

Applications

Mine hoisting, blast furnace hoisting, large casting, oil drilling, forestry and marine industries,all kinds ofelevator, large hoisting, ground cable car ships and offshore facilities, cable railing.

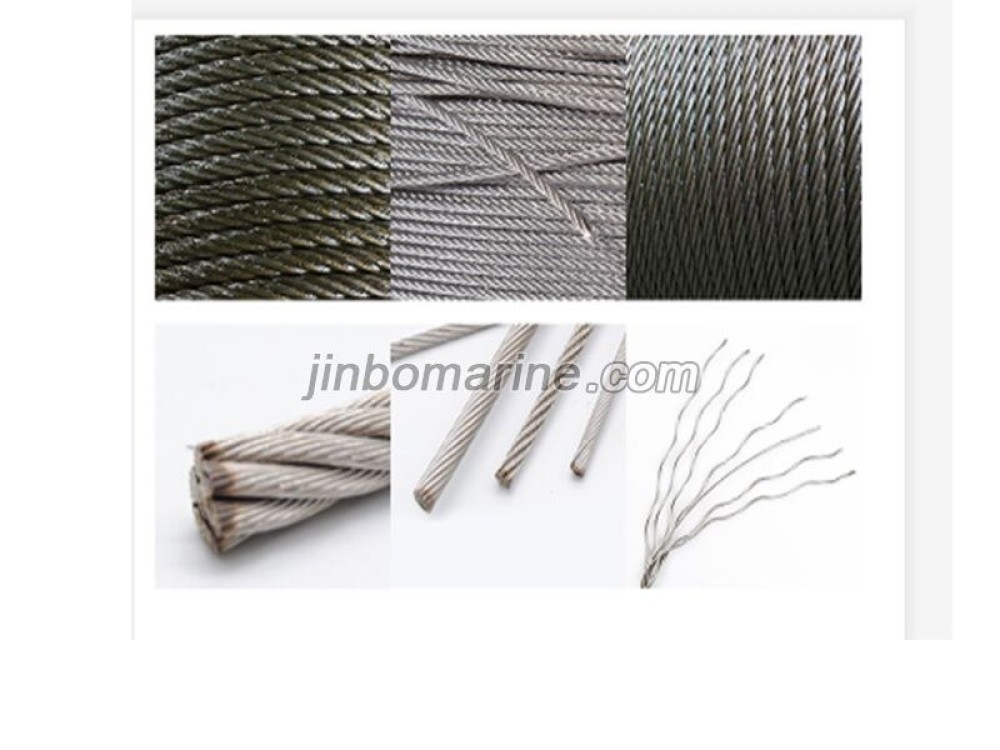

How To Choose Material

1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

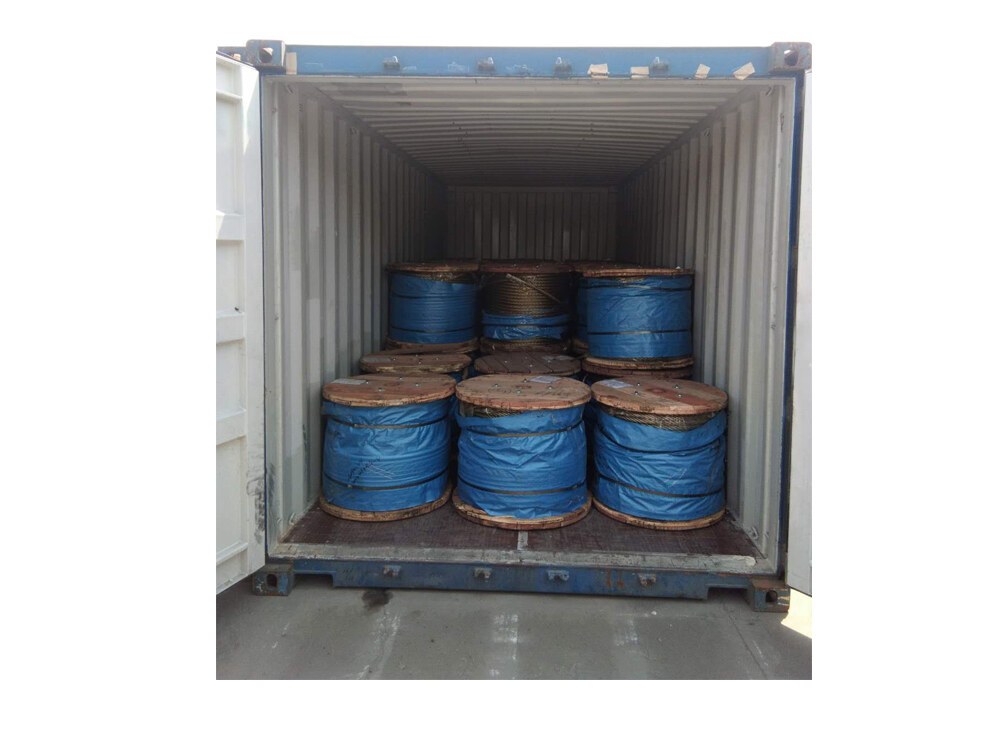

Packaging
