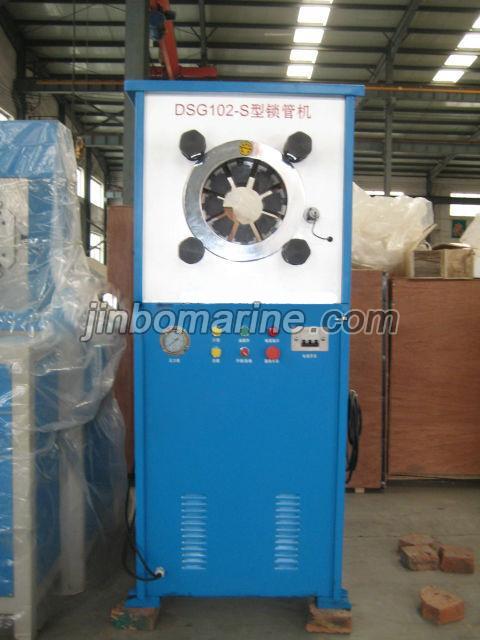

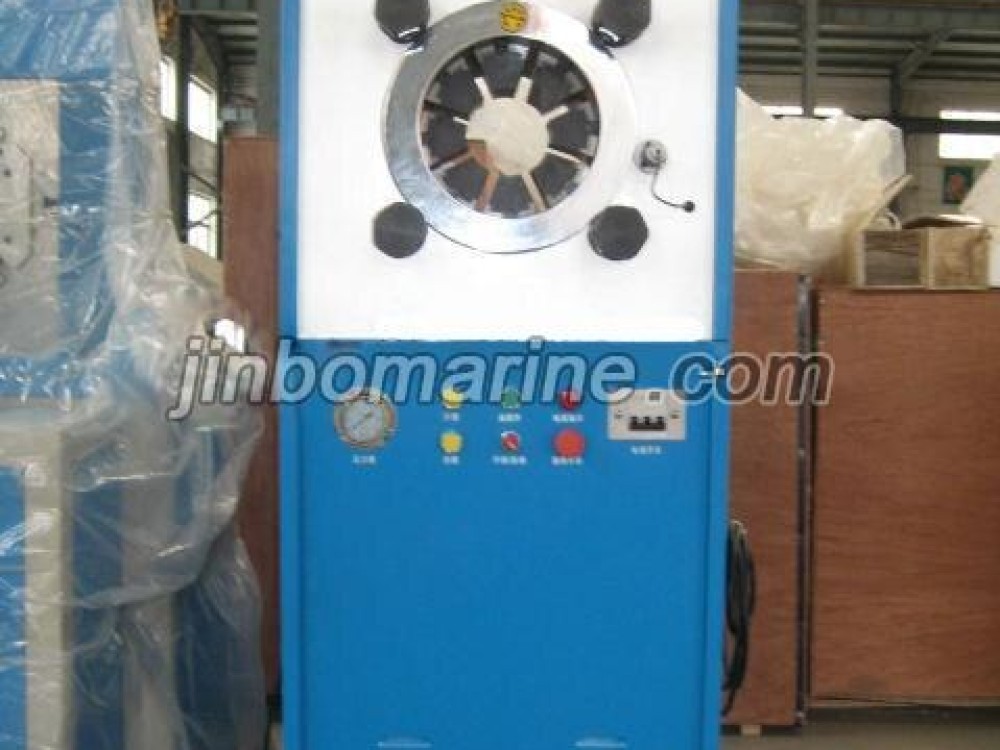

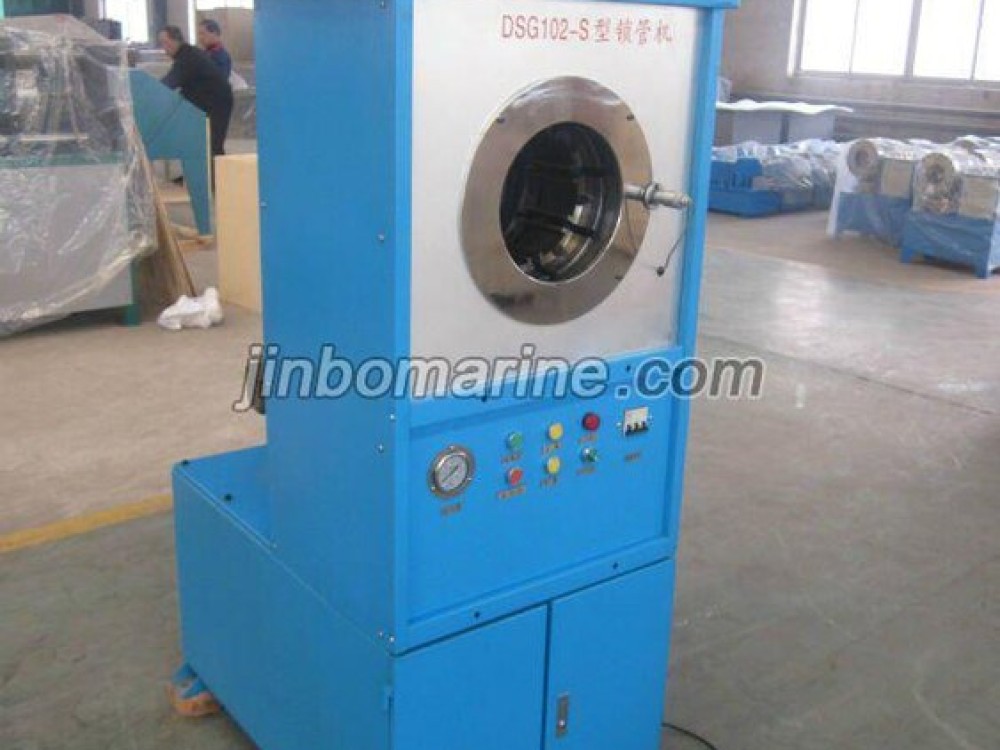

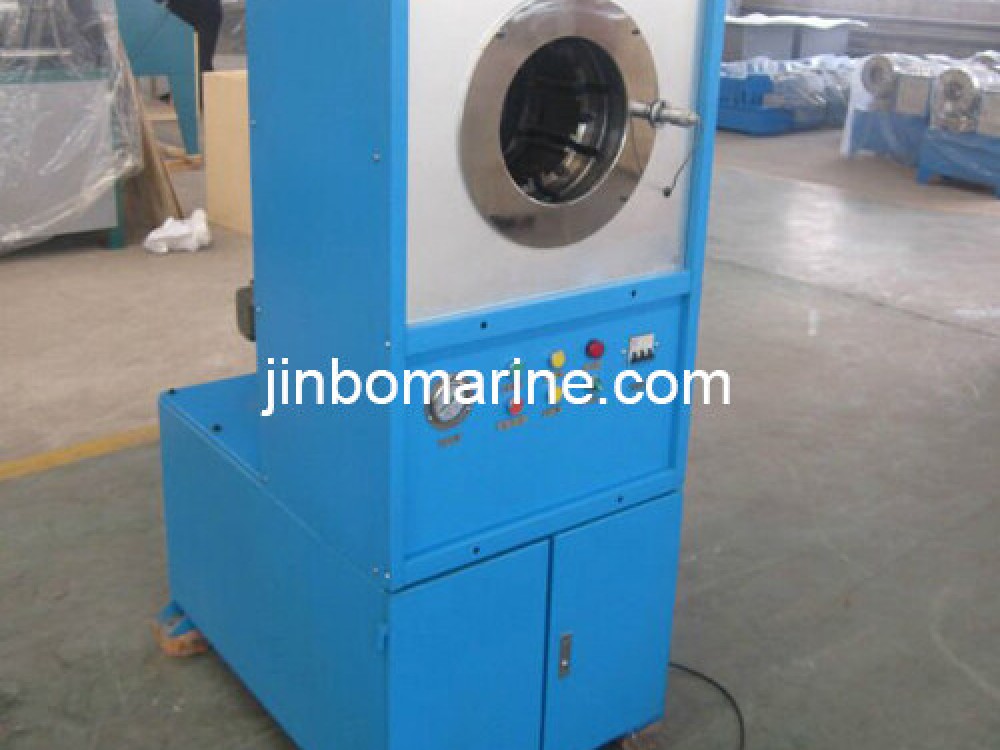

DSG102-S Hose Crimping Machine

DSG102-S hose crimping machine is applicable to thecrimpingprocessing for the burst resisting hose, fiber tube and

plastic pipe assembly used in the industry and agriculture and hydraulic transmission of engineering machinery. This machine has the following characteristics: small volume, light weight, having multifunction, rapid opening of die, being easy in operation, and convenient in maintenance.

1.small dimension and small weight

2. multifunction,rapid opening of die

3.easy to operate and repair.

Inside Diameter ofCrimpedRubber Hose:φ6 - 102 mm

Precision of Staff Gauge:0.02 mm

Power of Electric Motor:5.5KW

Maximum Crimping Force:1070 T

Rotating Speed:1440 r/min

Output Volume of Oil Pump:36 L/min

Capacity Oil Tank:200 L

Overall Dimension:1050×700×1550 (mm)

Weight:1500 Kg

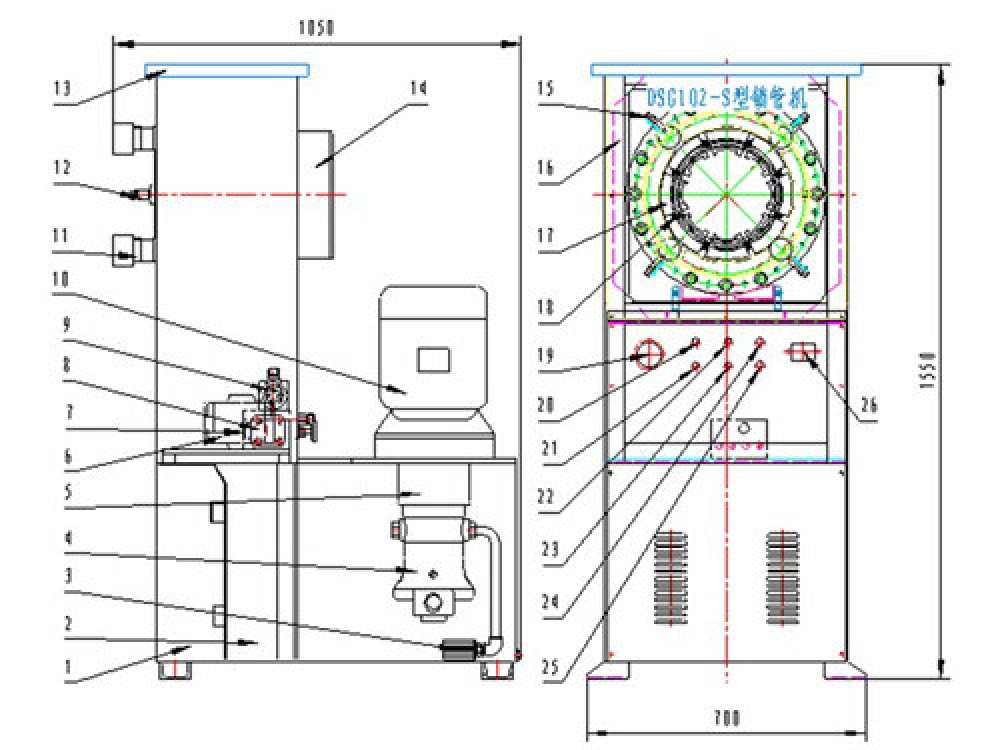

1. Electric Cabinet 2. Oil Tank 3. Filter Core 4. Oil Pump 5. Joining Disc 6. Liquid Control Valve 7. Oil Channel Block 8. Pressure Regulator Valve 9. Solenoid operated directional 10. Electric Motor 11. Die-Opening Cylinder 12. Staff Gauge 13. Top Cover of Frame 14. Piston 15. Joint of Die-Opening Cylinder 16. Frame 17. Die Holder 18. Spring 19. Pressure Gauge 20. Die-Opening Button 21. Die-Opening Button 22. Start-up Push Button of Oil Pump 23. Close-up Push Button of Oil Pump 24. Indicator Lamp of Power Supply 25. Manual/Automatic Knob 26. Power Supply Switch
