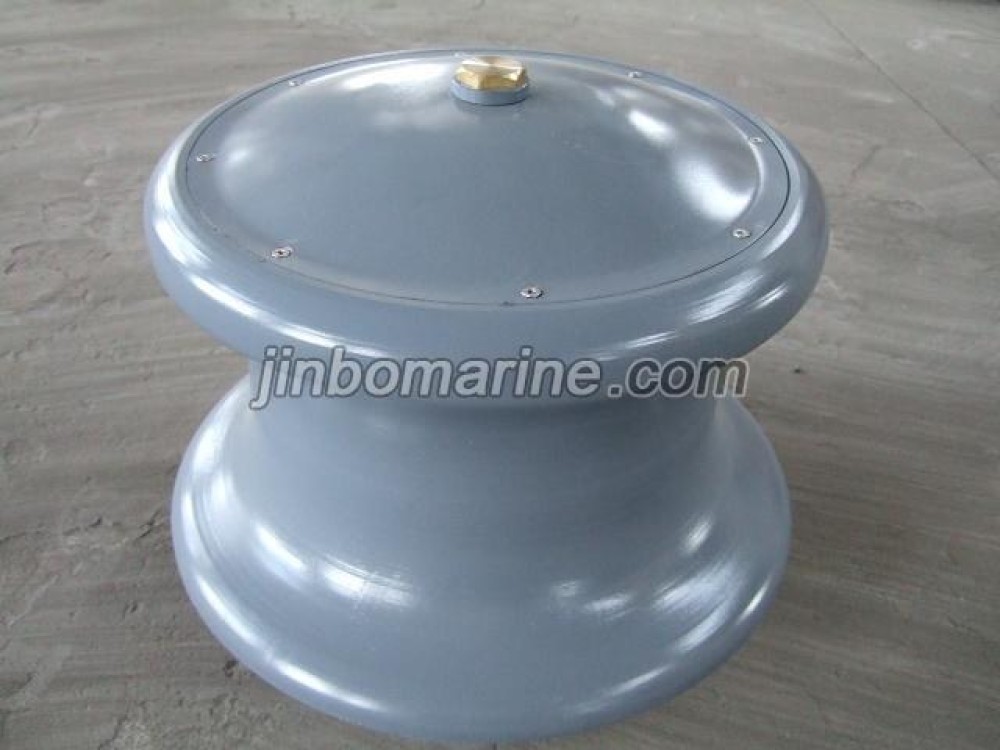

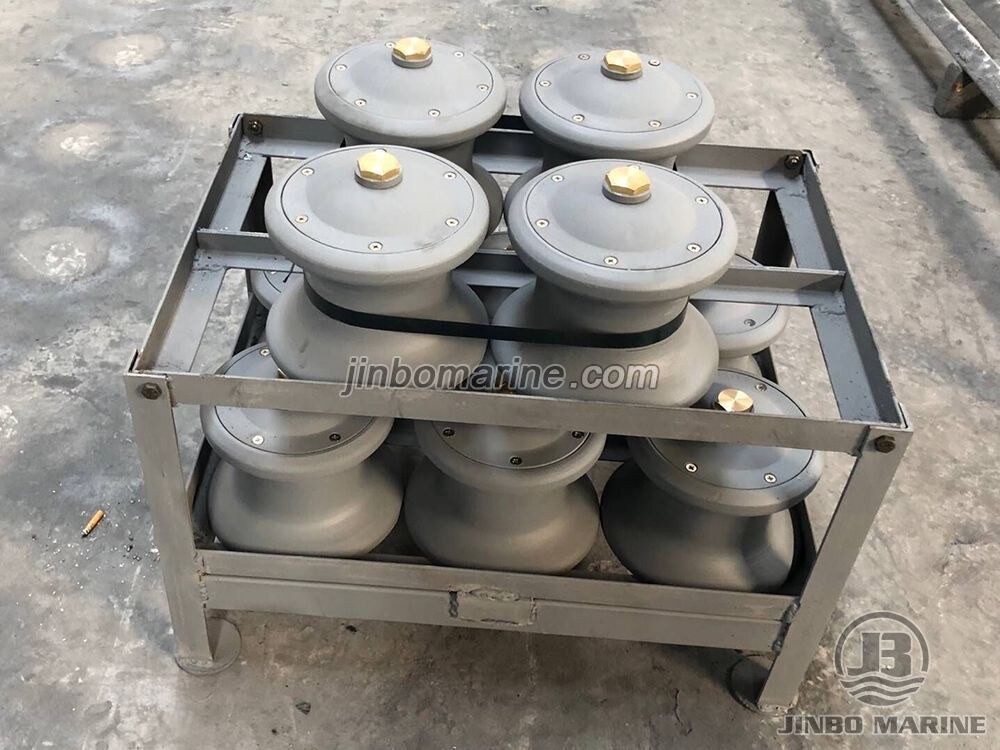

JIS F2014-1987 Fairlead Roller
- Category:Warping Roller
- Material:cast steel,cast iron
- Standards:JIS F2014-1987,CB58-83
- Certificate:ABS, BV, CCS,mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Jis F2014 1987 Fairlead Roller.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China JIS F2014-1987 Fairlead Roller:
JIS F2014-1987 fairlead roller------------Also known as CB58-83 Fairlead roller
With primer paint finish our Roller can be immediately ready for any vessel installation,our fairlead roller range utilises a combination of horizontal and vertical rollers to give you a good solution for your needs.
1.Certificate: ABS, BV, GL, DNV, CCS,mill certificate etc.
2.Finish: Epoxy finishing
3.Can be designed according to customers requirements.
4.Easily removable shafts.
| JIS F2014-1987 fairlead roller/CB58-83 Fairlead roller | |||||||||||||||
| Product No. | Nominal |
Steel
rope GB1102 Breaking Load 1520N/mm2 |

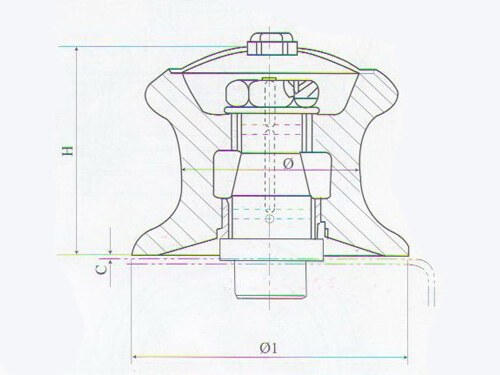

Base size | Dimension | Weight KG | ||||||||||
| Size(mm) | 6*24 | 6*30 | 6*37 | a | b | c | c1 | d | R | D1 | H | S | Cast iron | Cast steel | |
| C5R-001 | 100 | 11 | 11 | 11 | 60 | 125 | 8 | 6 | 48 | 30 | 160 | 128 | 3 | 9.4 | 9.9 |
| C5R-002 | 150 | 17 | 17.5 | 15 | 75 | 190 | 12 | 8 | 71 | 40 | 240 | 211 | 3 | 32.1 | 33.8 |
| C5R-003 | 200 | 22.5 | 21.5 | 19.5 | 85 | 230 | 14 | 10 | 95 | 40 | 310 | 251 | 3 | 64.6 | 68 |
| C5R-004 | 250 | 24 | 26 | 24 | 100 | 265 | 14 | 10 | 107 | 40 | 380 | 298 | 4 | 108 | 114 |
| C5R-005 | 300 | 30 | 32.5 | 28 | 100 | 320 | 16 | 14 | 127 | 60 | 440 | 321 | 4 | 159 | 168 |
| C5R-006 | 350 | 37.5 | 39 | 34.5 | 100 | 350 | 18 | 14 | 144 | 60 | 500 | 346 | 4 | 235 | 248 |
| C5R-007 | 400 | 41 | 39 | 39 | 100 | 380 | 20 | 16 | 161 | 60 | 560 | 371 | 5 | 336 | 355 |
| C5R-008 | 450 | 44.5 | 47.5 | 43 | 100 | 410 | 20 | 16 | 180 | 60 | 620 | 394 | 5 | 413 | 462 |
