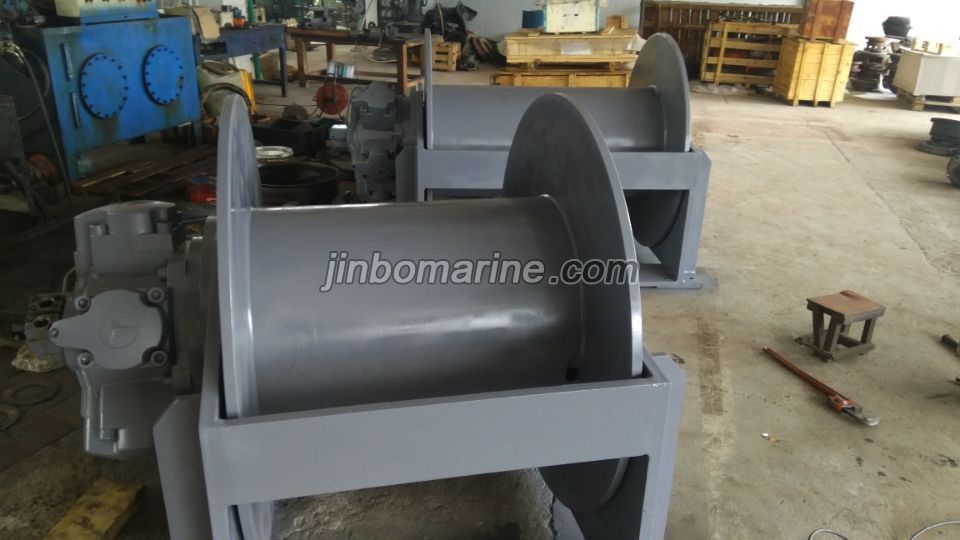

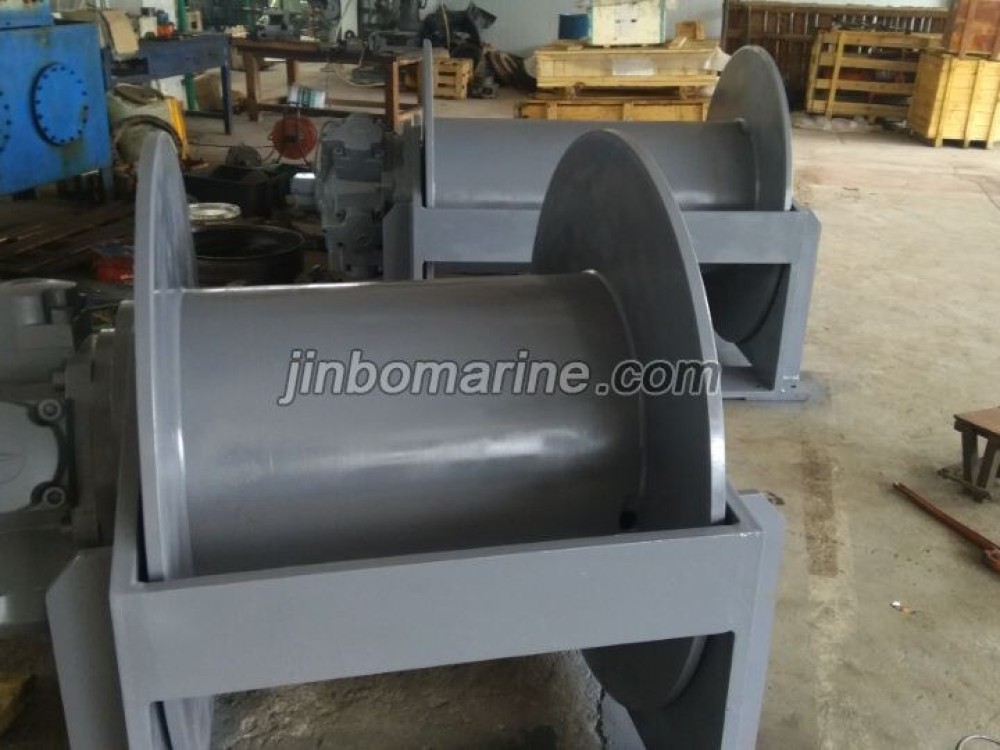

Messenger Winch
Description:
Messenger winch use the patent technique consist of a variety of valve blocks
with function of braking and single counterbalance valve, high speed hydraulic motor, Z type brake, KC
type or GC type planetary gearbox,drum,frame and clutch. The user only needs to provide a hydraulic
power pack and directional valve.Due to the winches fitted with diversified valve block,it not only simplified
the hydraulic system,but also improved the reliability of the winch.In addition,the winches feature a high
efficiency and power, low noise and energy consumption,and have a compact figure and good economic
valve. Therefore, the series have been widely applied to construction, petroleum,mining,geological drilling,
ship and deck machinery.
Parameter:
| Model | Working load | Displacement | Pressure | Speed | Wire | Layer | Drum Capacity | Weight | In/out oil port |
| MW2000 | 2000kn | 1500ml/r | 16Mpa | 25-27m/min | 12 | 4 | 100 | 100kgs | G1" |
| MW3000 | 3000kn | 2100ml/r | 16Mpa | 18-20m/min | 14 | 4 | 90 | 150kgs | G2" |
| MW4000 | 4000kn | 2800ml/r | 16Mpa | 19-22m/min | 15 | 4 | 85 | 150kgs | G3" |
| MW5000 | 5000kn | 3990ml/r | 16Mpa | 14-16m/min | 16 | 4 | 100 | 200kgs | G4" |
| MW6000 | 6000kn | 5600ml/r | 16Mpa | 18-20m/min | 18 | 4 | 100 | 200kgs | G5" |
| MW7000 | 7000kn | 6110ml/r | 16Mpa | 16-18m/min | 18 | 4 | 100 | 300kgs | G6" |
| MW8000 | 8000kn | 6909ml/r | 16Mpa | 14-16m/min | 20 | 4 | 100 | 300kgs | G7" |
| MW10000 | 10000kn | 7550ml/r | 16Mpa | 16-18m/min | 24 | 4 | 120 | 300kgs | G8" |
