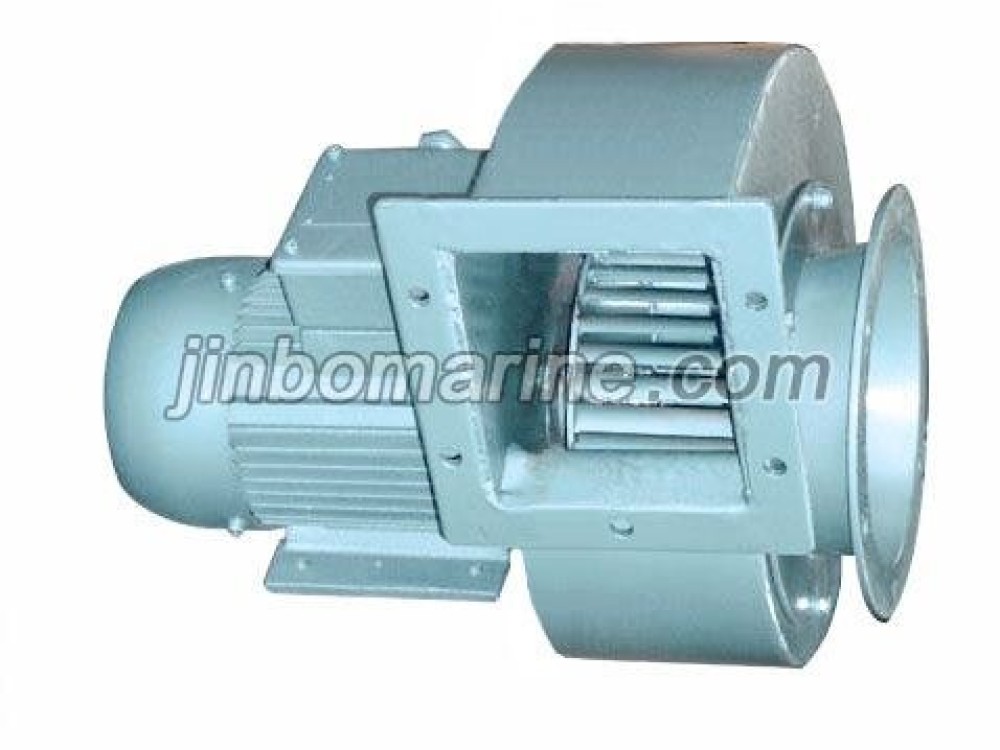

CWL Marine Small Size Centrifugal Fan

CWL (CXL) series small marine centrifugal fan is capable of blowing air, ocean air containing salt vapour, and corrosive air which contains oil vapour.

It can be used for ventilation of kitchen,toilet,bulkhead, meeting room and other cabins, as well as other suitable place in the filed of chemistry and industry, metallurgy on land.

This fan will explosion proof motor can deliver gas mixtures or vapour containing combustibles and explosives, can work normally in the dangerous field.

CWL (CXL) series fan is fitted with marine three phase tiny asynchronous motor.The power can be 380/220V, 50/60Hz.

1. High parameter of pressure (H>1.4), high parameter of Capacties (Q>0.5), high efficiency (n>65).

2. Light in weight, small in size, reliable in operation, low noise.

3.Performance parameter is various and application is wide.

4.High strength, good anticorrosion.

5.Strong resistance against swing, vibration and impact.

CWL (CXL) series marine small centrifugal fan is a kind of high efficiently fans. They are equipped with marine three-phase tiny asynchronous motor. The impellers of fan are consisting of strong foreward poly blades.The air enter the blade-passage from axial direction and produce energy by the centrifugal force, it is compressed and enter the pipeline from radial direction.

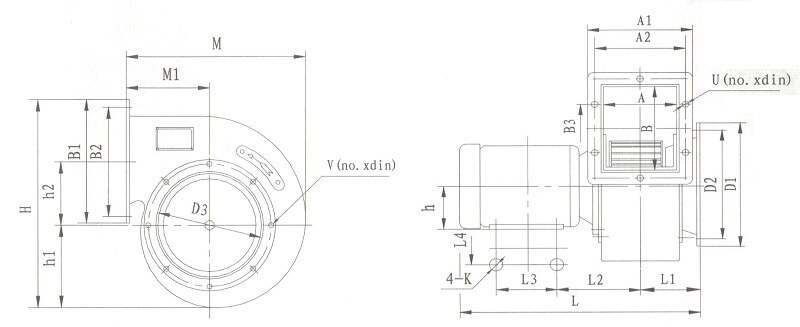

It is horizontal structure type, the impellers are mounted directly on the motor shaft.

The impellers are rivet jointed structure and the casing and entrance are welded. The impellers must be corrected by static and dynamic balance.

The fan can be made for left or right rotation.
