DIN1478 Galvanized Turnbuckle

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

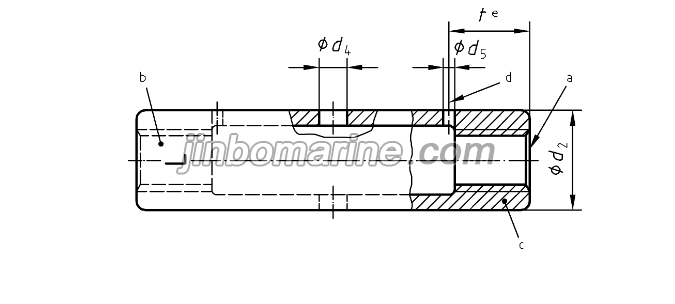

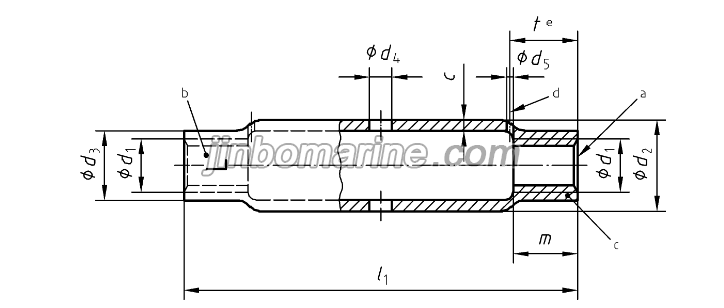

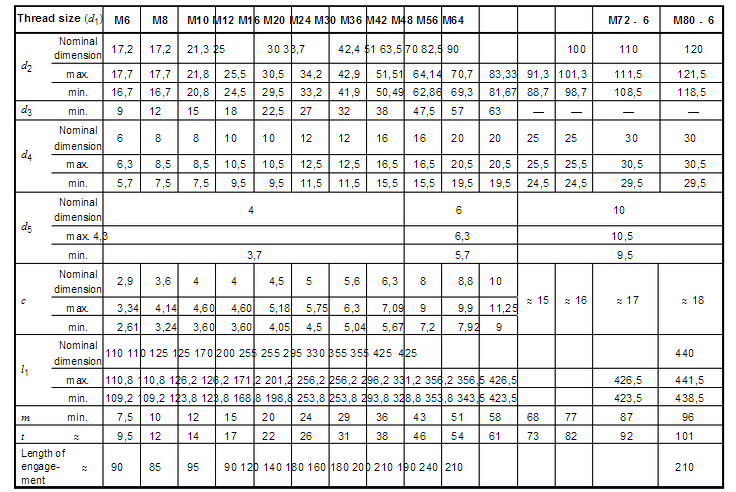

Turnbuckle is given as below table

Turnbuckle can be made of steel and stainless steel, which depending on the client request.

Connecting components

Welding studs for turnbuckles complying with this standard are covered in DIN 34828.

Assembly and loadability

Turnbuckles complying with this standard shall be assembled with welding studs as specified in DIN 34828 which are made of the same steel (S235JR or S355JR) or belong to the same property class (A4-50). The loadability of such assemblies is higher than that of the welding studs. When using turnbuckles with connecting components made of other materials, in particular materials of higher strength, the loadability of the turnbuckles shall be determined separately.

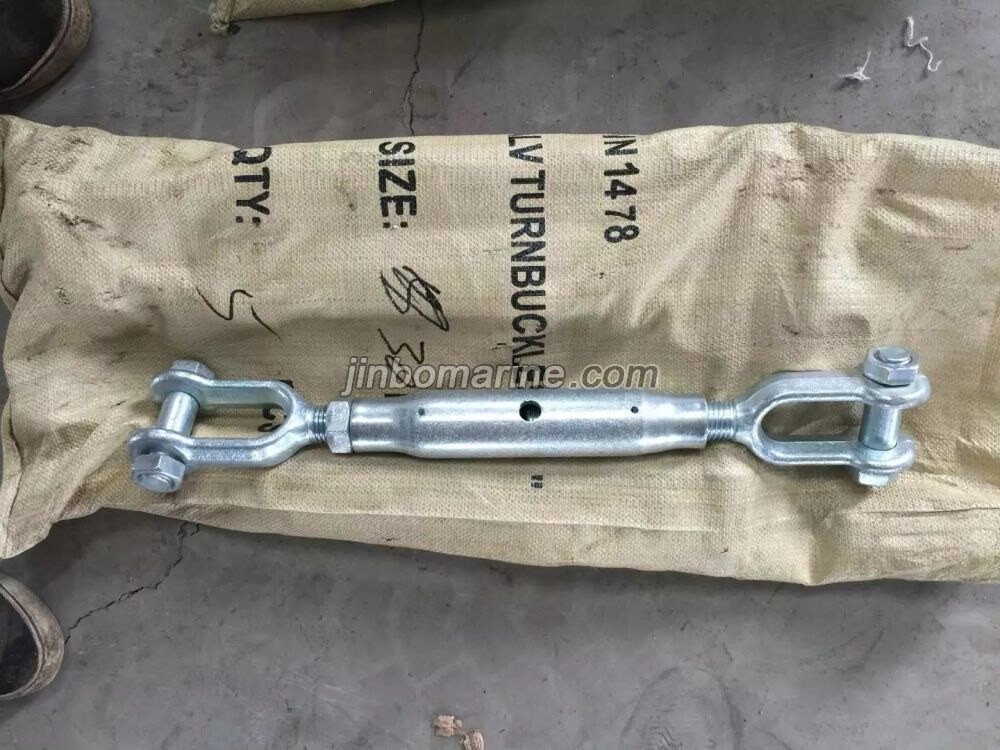

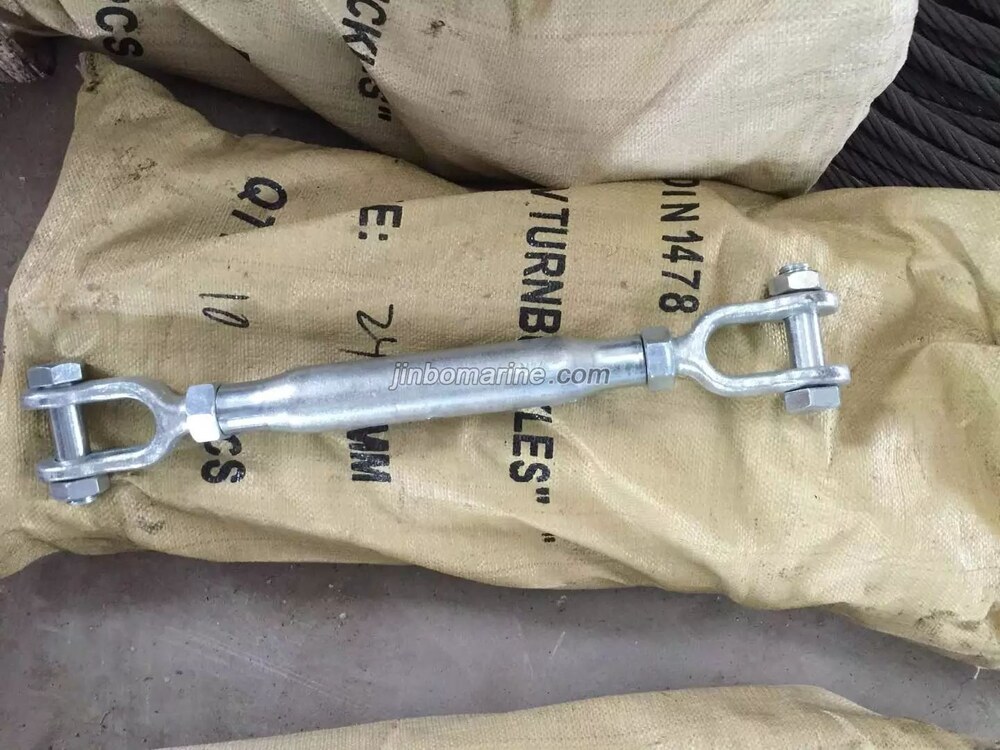

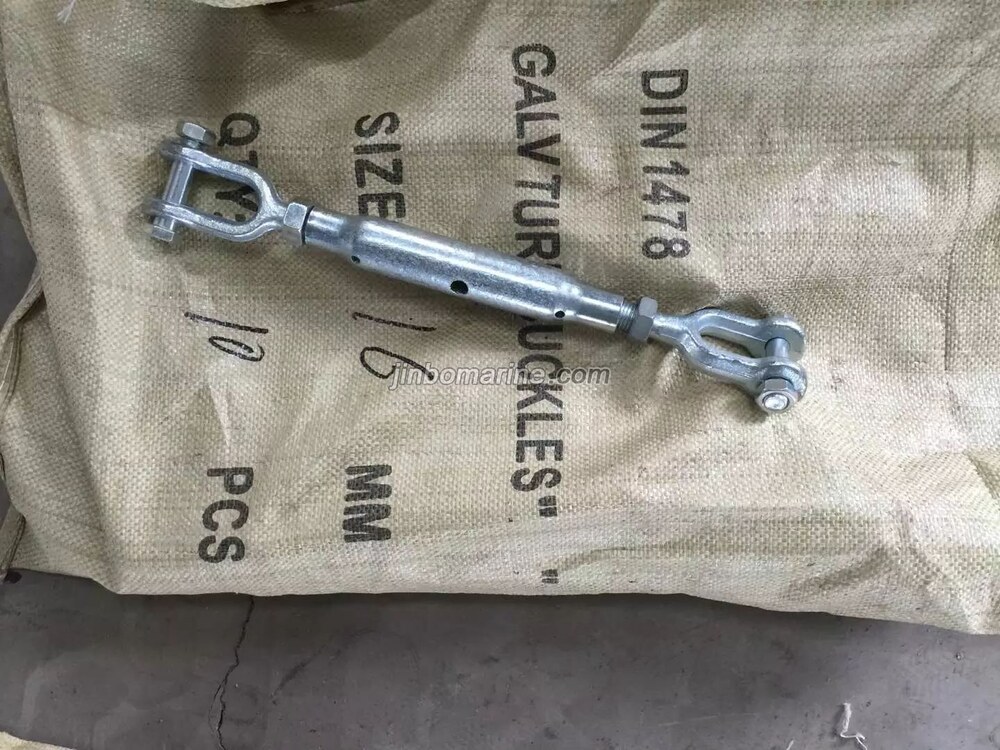

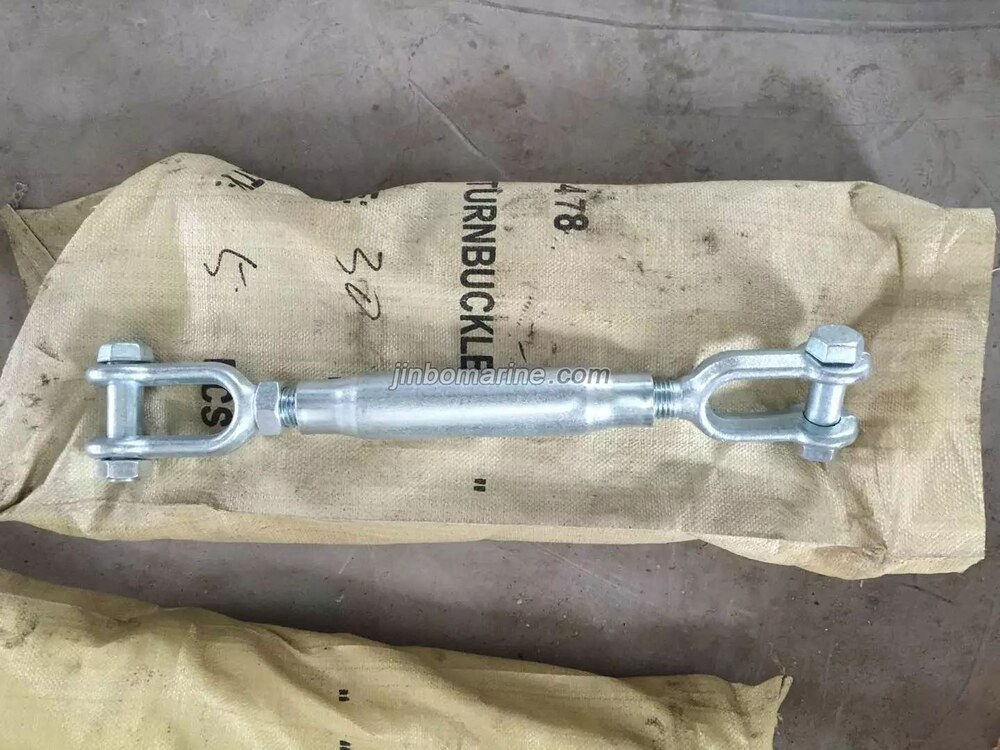

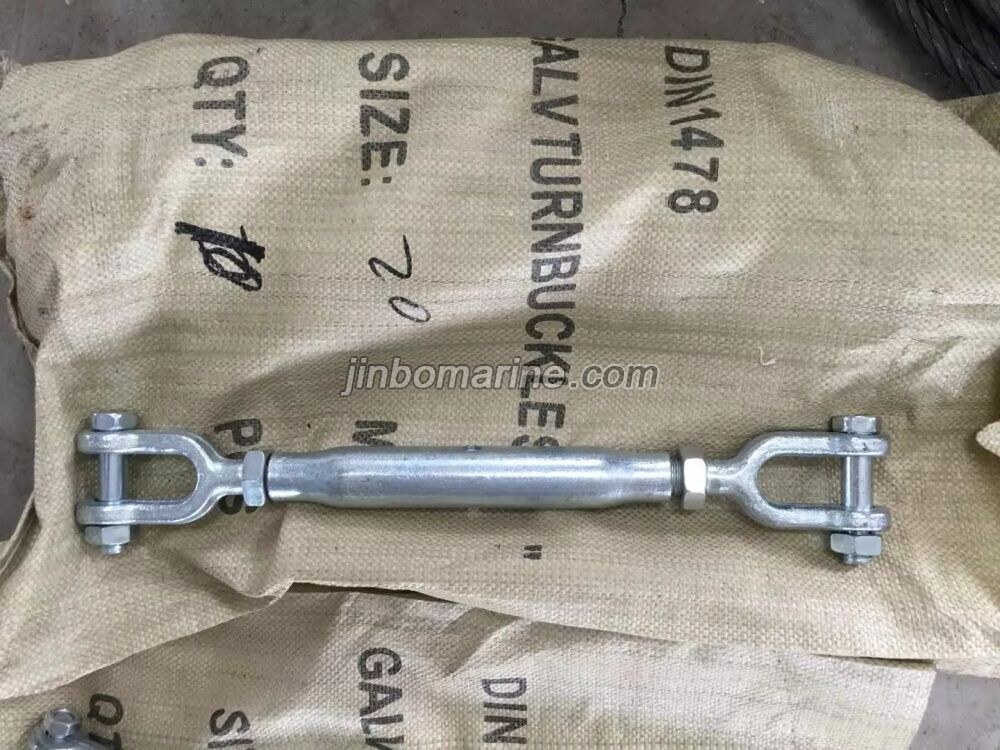

DIN1478 Galvanized Turnbuckle Photos
