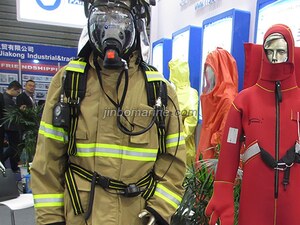

Air breathing apparatus

Self-contained open-circuit compressed air breathing apparatus are used widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehose, factory and metallurgy. It can provide effetely respiratory protecting from toxic gases for fire-fighting, life-saver, rescuer and operator who working in thick smoke, steam, and oxygen deficiency hazardous atmosphere.
The product was awarded the certificate of inspection by state quality testing center for fire-fighting equipment, and it is up to the China standard of GA124” self-contained open-circuit compressed air breathing apparatus for fire-fighting.

Condition

a.The atmosphere is polluted by smoke、poisonous gas or/and hot vapor, or in the
hypoxygen situation.

b.In the atmosphere of -30℃~+60℃,at 0~100% relative humidity and 70KPa~125
KPa atmosphere pressure.

Available Type:

5 liter steel cylinder breathing apparatus

6 liter steel cylinder breathing apparatus

6.8 liter Carbon fiber composite cyclinder breathing apparatus



Main performance index



Model



Working
Pressure (Mpa)



Volume



(L)



Air
Deposit (L)



Using
Term (min)



Alarm
Pressure (Mpa)



Weight



(Kg)



Packing



(mm)



RHZK
5/30



30



5



1500



40~50



5.5±0.5



≤12



755×460×290



RHZK
6/30



30



6



1800



50~60



5.5±0.5



≤14



755×460×290



RHZKF6.8/30



30



6.8



2040



50~60



5.5±0.5



≤10



755×460×290
