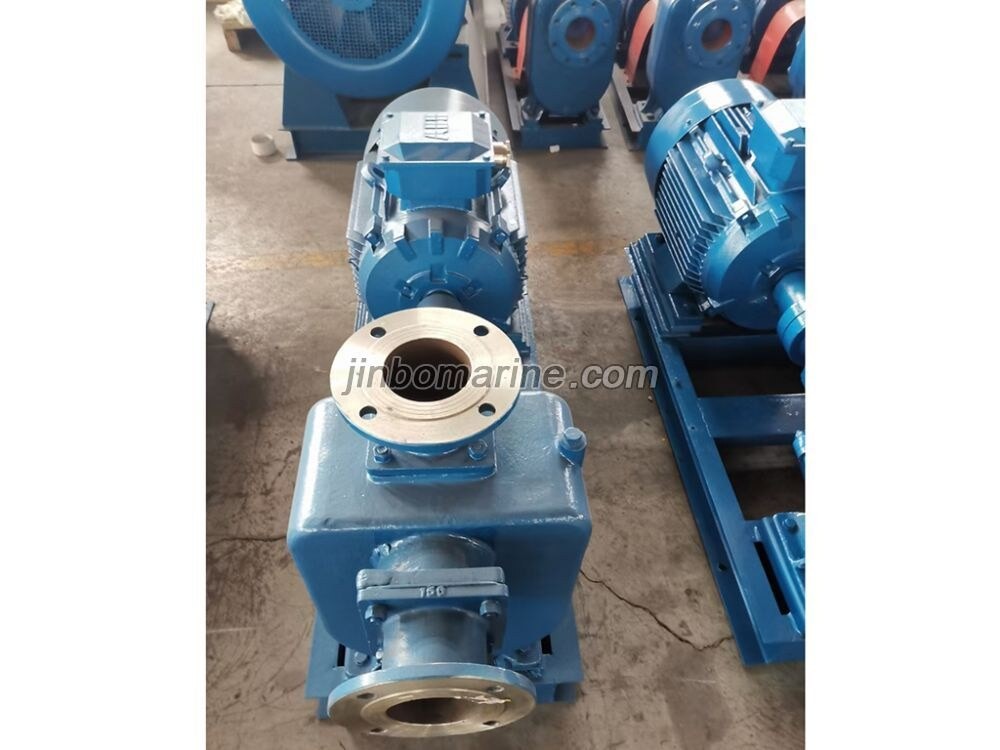

25CYZ-A-20 Self-suction Centrifugal Oil Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

25CYZ-A-20 Self-suction Centrifugal Oil Pump

1. Product overview:

The CYZ-A self-suction centrifugal oil pump produced in this unit is widely suitable for the latest pump products developed by digestion, absorption, and improved at home and abroad. , Oil trucks, airports, transport gasoline, kerosene, diesel, aviation coal, etc., such as the use of corrosive mechanical seals and stainless steel, can also be applied to chemical, pharmaceutical, brewing, electroplating, printing and dyeing, papermaking, power mines, etc., transportation, etc. The medium temperature is -20℃-80°C, the viscosity≤100 perpal, and the solid content can reach less than 30%.

Characteristic

1. This pump is a self -suction centrifugal pump. It has simple structure, convenient operation, stable operation, easy maintenance, long life, and strong self -absorbing ability. There is no base valve in the pipeline. You only need to ensure a quantitative oil in the pump body before work. When it is used on the tanker or water transmission ship, it can be used as a good effect on cockpit pumps, ship pressure pumps, ship fire pumps, and ship sweeping pumps.

2. This pump is made of high -quality materials. The sealing釆is sealed with hard alloy mechanical sealing, durable, and no need to install a safety valve to spit out the pipeline. It has improved labor conditions.

Model Flow Lift Suction Height Self-priming time Speed(r/min) Power(KW) (NPSH)r Size(mm) Weight
( m3/n) (L/S) (m) (m) (min) Inlet Outlet (kg)
25CYZ-A-20 3.2 0.9 20 6 2 2900 1.1 3 25 25 70
25CYZ-A32 3.2 0.9 32 6 2 2900 1.5 3 25 25 85
32CYZ-A50 3.2 0.9 50 6 2 2900 3 3 32 32 110
40CYZ-A-20 6.3 1.8 20 5 2 2900 1.5 3 40 40 95
40CYZ-A-32 6.3 1.8 32 5 2 2900 2.2 3 40 40 100
40CYZ-A-40 10 2.8 40 5 2 2900 4 3.5 40 40 150
40CYZ-A-50 6.3 1.8 50 5 2 2900 4 3.5 40 40 150
50CYZ-A-12 12.5 3.5 12 5 2 2900 1.5 3.5 50 50 90
50CYZ-A-20 15 3.5 20 5 2 2900 2.2 3.5 50 50 100
50CYZ-A-30 12.5 3.5 30 5 2 2900 3 3.5 50 50 150
50CYZ-A-35 12.5 3.5 35 5 2 2900 4 3.5 50 50 150
50CYZ-A-40 12.5 3.5 40 5 2 2900 4 3.5 50 50 150
50CYZ-A-50 12.5 3.5 50 5 2 2900 5.5 3.5 50 50 190
50CYZ-A-60 12.5 3.5 60 5 2 2900 7.5 3.5 50 50 210
50CYZ-A-75 15 4.2 75 5 2 2900 11 3.5 50 50 320
65CYZ-A-15 30 8.3 15 4 2.5 2900 3 3.5 65 65 145
65CYZ-A-32 25 6.9 32 5 2 2900 5.5 3.5 65 65 180
65CYZ-A-50 25 6.9 50 5 2 2900 7.5 3.5 65 65 200
65CYZ-A-70 25 6.9 70 5 2 2900 15 3.5 65 65 320
80CYZ-A-13 35 9.7 13 3.5 3.4 2900 3 4.5 80 80 145
80CYZ-A-17 43 12 17 3.5 3 2900 4 4.5 80 80 160
80CYZ-A-22 40 11.1 22 3.5 2.5 2900 5.5 4.5 80 80 190
80CYZ-A-25 50 13.9 25 4 2.5 2900 7.5 4.5 80 80 190
80CYZ-A-32 50 13.9 32 4 2 2900 7.5 4 80 80 210
80CYZ-A-40 50 13.9 40 4 2 2900 11 4 80 80 290
80CYZ-A-55 60 16.7 55 4.5 2 2900 18.5 4 80 80 320
80CYZ-A-70 60 16.7 70 4.5 2 2900 22 4 80 80 420
100CYZ-A-20 80 22.3 20 3.5 2 2900 7.5 4.5 80 80 220
100CYZ-A-25 100 27.8 25 4 2 2900 11 4.5 100 100 290
100CYZ-A-32 100 27.8 32 4.5 2 2900 15 4.5 100 100 310
100CYZ-A-40 100 27.8 40 4.5 2 2900 18.5 4 100 100 330
100CYZ-A-50 100 27.8 50 4.5 2 2900 22 4 100 100 370
100CYZ-A-65 100 27.8 65 4.5 2 2900 30 4 100 100 470
100CYZ-A-75 80 22.3 75 4.5 2 2900 30 4 100 100 480
150CYZ-A-15 180 50.2 20 4.5 2.5 1450 15 3 150 150 450
150CYZ-A-30 180 50.2 30 4.5 2.5 1450 30 3.5 150 150 580
150CYZ-A-45 160 44.4 45 4.5 2 2900 37 4.5 150 150 600
150CYZ-A-55 160 44.4 55 4.5 2 2900 45 4.5 150 150 750
150CYZ-A-65 160 44.4 65 4.5 2 2900 55 4.5 150 150 820
150CYZ-A-80 160 44.4 80 4.5 2 2900 55 4.5 150 150 850
200CYZ-A-32 400 111.1 32 4.5 2 1450 75 4 200 200 1280
200CYZ-A-63 280 77.8 63 4.5 2 1450 90 4 200 200 1450
250CYZ-A-50 400 111.1 50 4.5 2 1450 90 4 250 250 1950
300CYZ-A-50 500 138.9 50 4.5 2 1450 110 4 300 300 1800
