BLTO82S Heavy Duty Hoist Ring-S

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLTO82S Heavy Duty Hoist Ring-S:

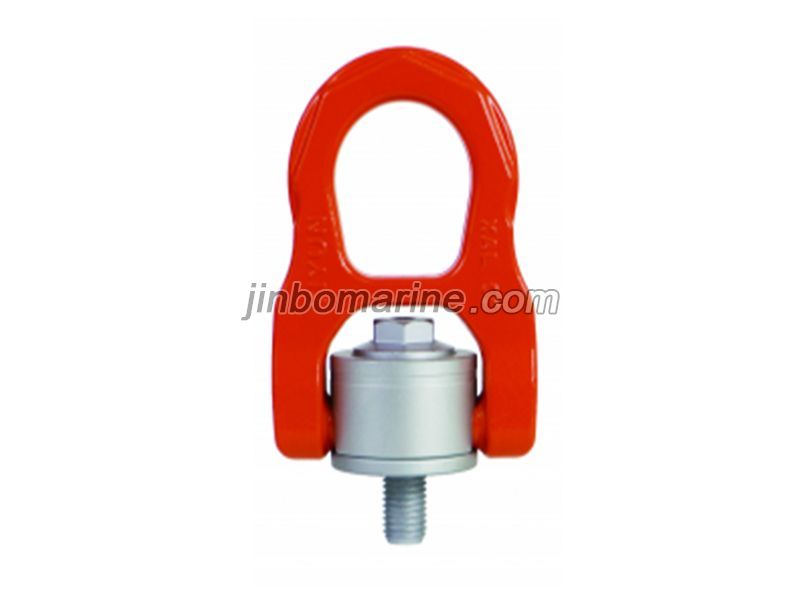

BLTO82S Heavy Duty Hoist Ring-S

Metric Thread:

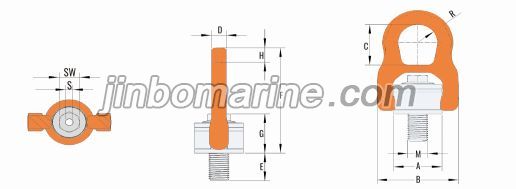

ITEM NO. WLL/T M Dimensional Parameters/mm Locking Torque/Nm Kg
E A B C D F G H R S SW
BLT082S-M6 0.2 M6x1.0 12 33 58 36 10 84 30 10 15.5 6 13 10 0.3
BLTO82S-M8 0.5 M8x1.25 12 33 58 36 10 84 30 10 15.5 6 13 10 0.3
BLTO82S-M10 0.7 M10x1.5 15 33 58 36 10 84 30 10 15.5 6 13 10 0.3
BLT082S-M12 1 M12x1.75 20 33 58 36 10 84 30 10 15.5 6 13 15 0.35
BLTO82S-M14 1.5 M14x2.0 21 50 90 50 15 126 44.5 18 22 8 19 30 1.15
BLTO82S-M16 2 M16x2.0 24 50 90 50 15 126 44.5 18 22 8 19 50 1.2
BLT082S-M18 2.5 M18x2.5 26 65 117 66 22 163 58 21 29.5 10 27 70 2.6
BLT082S-M20 3 M20x2.5 30 65 117 66 22 163 58 21 29.5 10 27 100 2.65
BLT082S-M22 4 M22x2.5 33 65 117 66 22 163 58 21 29.5 10 27 100 2.7
BLT082S-M24 5 M24x3.0 36 65 117 66 22 163 58 21 29.5 10 27 160 2.75
BLT082S-M27 5.6 M27x3.0 38 87 147 80 26.5 206 76.5 28 35.5 14 34 200 5.45
BLT082S-M30 7.8 M30x3.5 48 87 147 80 26.5 206 76.5 28 35.5 14 34 500 5.8
BLT082S-M33 8.3 M33x3.5 48 87 147 80 26.5 206 76.5 28 35.5 14 34 500 5.7
