BLTO83S Universal Hoist Ring-S

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLTO83S Universal Hoist Ring-S:

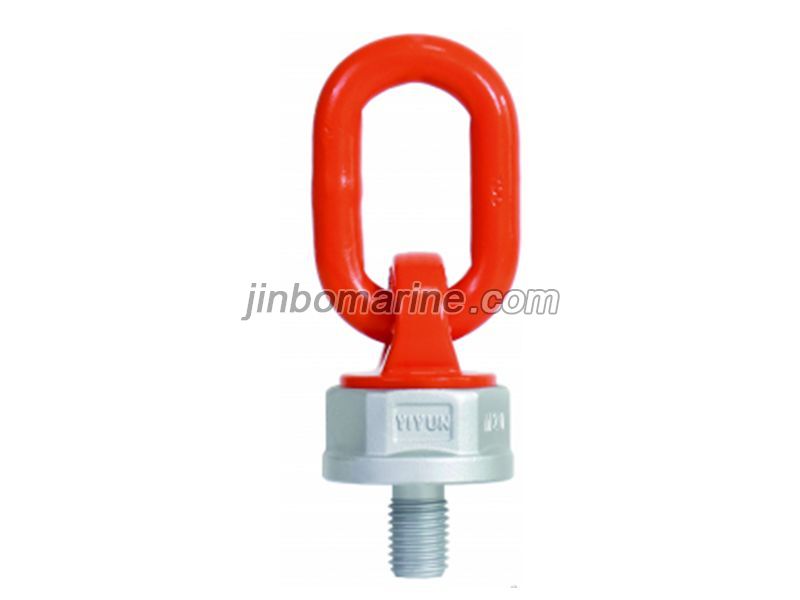

BLTO83S Universal Hoist Ring-S

Metric Thread:

ITEM NO. WLL/T M Dimensional Parameters/mm Locking Torque/Nm Kg

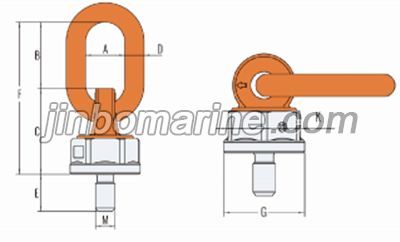

E A±2 B±3 C D F±3 G K
BLTO83S-M8 0.4 M8x1.25 12 30 43 53 13 96 42 37 10-40 0.48
BLTO83S-M10 0.6 M10x1.5 19 30 43 53 13 96 42 37 10-40 0.49
BLTO83S-M12S 0.7 M12x1.75 19 30 43 53 13 96 42 37 15-40 0.49
BLT083S-M14 1.25 M14x2.0 31.8 30 43 53 13 96 42 37 30-100 0.51
BLTO835-M16S 1.5 M16x2.0 31.8 30 43 53 13 96 42 37 45-130 0.52
BLTO83S-M12B 1.05 M12x1.75 19 34 54 70.5 16 124.5 61 54.5 15-40 1.2
BLTO835-M16B 1.9 M16x2.0 30 34 54 70.5 16 124.5 61 54.5 45-130 1.2
BLTO83S-M18S 1.9 M18x2.5 30 34 54 70.5 16 124.5 61 54.5 100-170 1.2
BLTO83S-M20S 2 M20x2.5 30 34 54 70.5 16 124.5 61 54.5 100-170 1.3
BLTO83S-M22S 2 M22x2.5 30 34 54 70.5 16 124.5 61 54.5 100-170 1.3
BLTO83S-M24S 3.15 M24x3.0 30 34 54 70.5 16 124.5 61 54.5 100-170 3
BLTO835-M18B 2 M18x2.5 38.1 40 68 88 20 156 72 64.5 100-170 2.2
BLTO83S-M20B 2.5 M20x2.5 38.1 40 68 88 20 156 72 54.5 100-170 2.2
